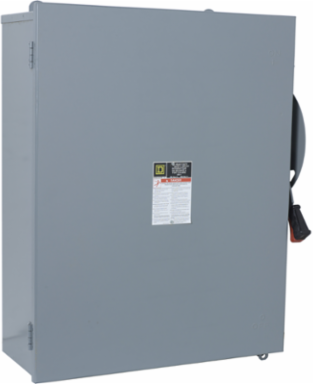

Square D H464 Heavy Duty Fusible Switch 600V 200A 4P NEMA 1, Surface Mount, UL Listed
- MPN: H464
- UPC: 785901482512
- PPN: SCH-H464
CAD
$4449.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust performance, the Heavy Duty Fusible Switch from Schneider Electric is designed to meet the demands of heavy applications with a rated operational voltage of 600V AC/DC and a current capacity of 200A. This surface-mounted switch features a durable NEMA 1 steel enclosure, ensuring reliability and safety in various environments. With a compact design measuring 24.88 inches in width, 29 inches in height, and 8.75 inches in depth, it is suitable for tight spaces while providing essential protection with a short-circuit current rating of up to 200 kA. Additionally, this UL-listed device is compliant with environmental regulations, making it a sustainable choice for modern electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 1 steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 4
Disconnector Device Typefusible disconnect
[In] Rated Current200 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 29 in
- Tightening Torque
- 275-275 lbf.in 13.3-127 mm² AWG 6...250 kcmil)
- Electrical Connection
- lugs
- Wiring Configuration
- 4-wire
- Depth
- 8.75 in
- Short-Circuit Current
- 10 kA for H or K || 200 kA for R or J
Device Mountingsurface
Fuse TypeH or K || R or J
Awg GaugeAWG 6...250 kcmil copper or aluminum
Width24.88 in
Net Weight39 kg
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305005EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
