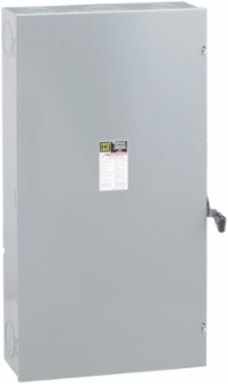

Square D D325N General Duty Safety Switch, Fusible, 3 Pole, 400A, 240VAC, Surface Mounted
Square D D325N General Duty Safety Switch, Fusible, 3 Pole, 400A, 240VAC, Surface Mounted
- MPN: D325N
- UPC: 785901461555
- PPN: SCH-D325N
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1715.49/ EA
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 400A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K, J or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Features
- Designed for residential and commercial applications
- Fusible switches provide over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- Quick make, quick break operating mechanism
- UL listed
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- AWG Gauge
- AWG 1/0...600 kcmil aluminium/copper, 2 x AWG 1/0...2 x 300 kcmil aluminium/copper
- Tightening Torque
- 340-340 lbf.in (AWG 1/0...750 kcmil), 340-340 lbf.in (2 x AWG 1/0...2 x 300 kcmil)
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 127 kg CO2 eq., 126.65447261997896
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 266 kg CO2 eq., 266.24594643389537
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Device Composition
- neutral (factory installed)
- Electrical Connection
- lugs
- Fuse Type
- H, K, J or R
- Package Weight Lbs
- 52.163 kg
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- general duty
- Sustainable Packaging
- Yes
- Wiring Configuration
- 4-wire (3PH + G)
- Medium Desc
- Safety switch, general duty, fusible, 3 pole, 4 wire, 240VAC, 400A, Type 1, with neutral
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Motor Power HP50 hp at 240 V AC 60 Hz for 3 phase motors, 125 hp at 240 V AC 60 Hz for 3 phase motors
Carbon Footprint Of The Distribution Phase A4132.04689333875015, 132 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1261051950797972, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6547 kg CO2 eq., 547.0206826529308
Local Publishable Date2025-12-16
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationresidential
Disconnector Device Typefusible disconnect switch
Energy Efficiency OptimizedFalse
Halogen Free StatusHalogen free plastic parts product
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Short Circuit Current100 kA maximum depending on fuse H, K, J or R
Total Lifecycle Carbon Footprint1 072 kg CO2 eq.
Ue Rated Operational Voltage2240 V AC
Stocking FlagN
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Ue Rated Operational Voltage5240 V AC
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1072.094100240635
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications

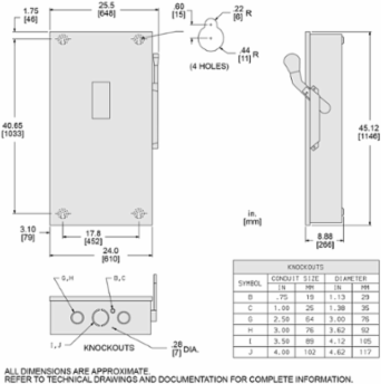

- Depth
- 8.88 in
