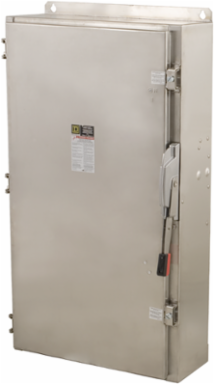

Square D CH366DS Heavy Duty Fusible Safety Switch 600A 600V 3 Poles NEMA 4/4X 304 Steel
- MPN: CH366DS
- UPC: 785901610311
- PPN: SCH-CH366DS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust performance in demanding environments, this heavy duty safety switch from Schneider Electric is an essential component for reliable power distribution. With a 600A rating at 600V and three poles, it ensures safe disconnection of electrical circuits under normal and fault conditions. Its NEMA 4/4X enclosure provides additional protection against harsh weather conditions and corrosive environments, making it ideal for industrial applications. Crafted from durable 304 stainless steel, this safety switch combines resilience with functional design, providing peace of mind through enhanced safety and performance.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Electrical Connection
- lugs
- Number Of Poles
- 3
Disconnector Device Typefusible disconnect
Product Or Component TypeSingle Throw Safety Switch
Complementary
- Height
- 46.25 in
- Tightening Torque
- 375-375 lbf.in AWG 3/0...500 kcmil)
- Awg Gauge
- AWG 3/0...500 kcmil copper or aluminum
- Depth
- 10.13 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
Device Mountingsurface
[In] Rated Current600 A
Width26.25 in
Device Compositionnone
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404026EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- CSA
Nema Degree Of ProtectionNEMA 4/4X stainless steel 304
