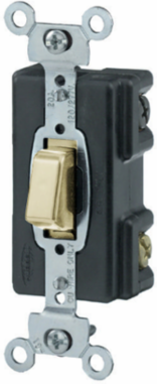

Hubbell Wiring Device-Kellems HBL1282I Industrial Grade Double Pole Switch, 20A 120/277V AC, Ivory
- MPN: HBL1282I
- UPC: 783585016863
- PPN: HBL-HBL1282I
- UNSPSC: 39122216
CAD
$104.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Double Pole, 20A 120/277V AC, Screw Terminals, Ivory
Features
- Large brass binding head screws with deep slots
- Thread cleaning captive mounting screw
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.5 in x 1.45 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 20 A
- Number of Poles
- Double Pole
- Size
- 3.28 in x 1.5 in x 1.45 in
- Voltage Rating
- 120-277 VAC
- Weight
- 0.2 lb.
- Engineering Drawing 1 Display Text
- HBL1282I AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Double Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 1282I
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.15 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359315101
Current / Amperage Rating20 A
Height1.45 in
Length3.28 in
Temperature Rise - Max.30°C maximum at rated current
ColorIvory
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating Description120-277 VAC
Width1.5 in
ConnectivitySide Wired Only
Number Of PolesDouble Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceDP PRESSSWITCH, 20A, IV
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A240
SeriesGeneral Purpose
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585016863
Case Weight10.000 lb.
Lowest Level UOMEach
