PMA NSBV-P213-7 Special Products
- MPN: NSBV-P213-7
- UPC: 786209962690
- PPN: T-B-NSBV-P213-7
CAD
$151.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

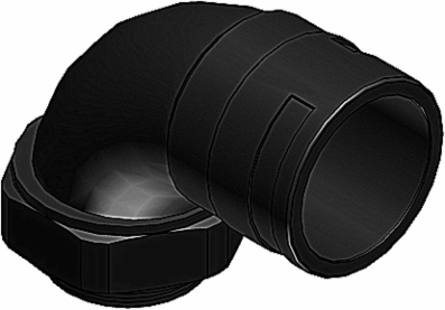

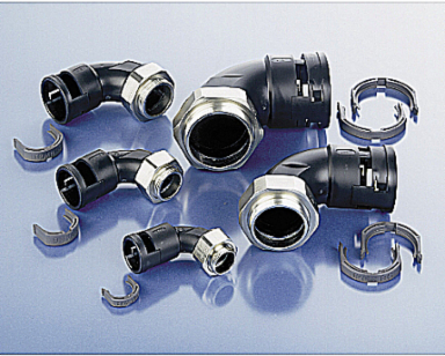

SBV Swivel Connector 90 Degree Curved Elbow, PG Thread - Thread 21, Fits to Conduit Size NW/Metric 23/25, Polyamide 6 with Nickel Plated Brass Threads, Color Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- PG21
- Thread length
- 7mm
- Total height
- 87.5mm
- Material sealing
- No sealing
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit DIN EN 61386-23
- N
- Operating temperature
- -40 - +105°C
Nominal diameter25mm
Model90°-Bend
Construction typeExternal thread
Thread typeOther
Thread materialBrass
Total length69mm
MaterialPolyamide
ColourBlack
Approved in combination with protective conduit URN
Approved in combination with protective conduit Lloyd's RegisterN
North American Specifications (UNSPSC)
- UNSPSC
- 39131717 Electrical conduit elbow
- Brand Name
- PMA
- Application
- For Applications with High Technical Requirements, Mainly In Machine Building
- Color
- Black
- Trade Size
- NW23/25Metric
IGCC5746 Electrical conduit elbow
TypeSpecial Products
MaterialHigh-Grade Formulated Polyamide/Nylon 6, Thread and Integrated Swivel Adapter Made from Nickel Plated Brass
SizePG21
Connection90 Degree
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity50
Weight Uom0.23 lbs. Each
