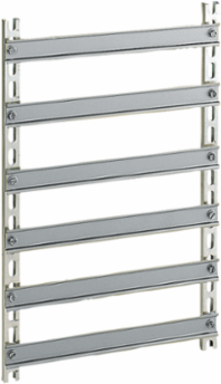

Schneider Electric NSYMD33 Symmetrical Mounting Chassis for Enclosures 300x300mm, Aluminium Rails
- MPN: NSYMD33
- PPN: SCH-NSYMD33
CAD
$92.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Symmetrical mounting chassis for enclosures (S3D, S3X, PLM, CRN). (4 rails) 300 x 300 mm. Vertical aluminium rails and 4 cross rails (symmetrical DIN). 2 uprights. Steel for rail, aluminum for uprights.
Documentation & Downloads
Specifications
Key Specifications
- Type Of Rail
- symmetrical DIN
- Mounting Support
- direct fixing on backstuds || spacer || step slide
- Accessory / Separate Part Category
- mounting accessory
- Product Or Component Type
- chassis
- Device Application
- multi-purpose
Enclosure Nominal DimensionsH: 300 mm W: 300 mm D: 150 mm || - H: 300 mm W: 300 mm D: 200 mm
Range CompatibilitySpacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X || Thalassa Thalassa PLM
Quantity Per Setset of 1
Device Compositionfixing elements || 2 upright || 4 DIN rail
RangeSpacial
Complementary
- Adjustment
- on step slides, type NSYSDCR…, pitch 12.5 mm
- Height
- nominal 300 mm || real 239.3 mm
- Depth
- real 30 mm
Widthnominal 300 mm || real 250 mm
Materialuprights aluminium || rail steel
Fixing Modescrewed on backstuds || by fixing element
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
