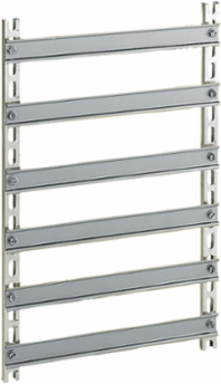

Schneider Electric NSYMD54 Symmetrical Mounting Chassis for Enclosures 500mm x 400mm, Aluminium & Steel
- MPN: NSYMD54
- PPN: SCH-NSYMD54
CAD
$112.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Symmetrical mounting chassis for enclosures (S3D, S3X, PLM, CRN). (4 rails) 500 x 400 mm. Vertical aluminium rails and 4 cross rails (symmetrical DIN). 2 uprights. Steel for rail, aluminum for uprights.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
- Width
- 13.78 in
Height17.3 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 upright, 4 DIN rail
- Fixing Mode
- screwed on backstuds, by fixing element
- Mounting Support
- direct fixing on backstuds, step slide, spacer
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- on step slides, type NSYSDCR…, pitch 12.5 mm
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Type Of Rail
- symmetrical DIN
- Height Nominal
- nominal: 500 mm
- Width Nominal
- nominal: 400 mm
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 878.000 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Materialuprights aluminium, rail steel
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Product Or Component Typechassis
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP1001004EN
Height Usefulreal: 439.3 mm
Width Realreal: 350 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- chassis
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
