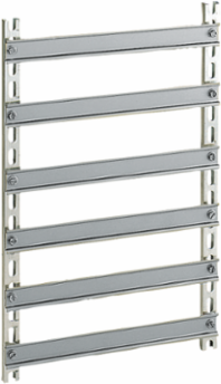

Schneider Electric NSYMD108 Symmetrical Mounting Chassis for Enclosures 1000x800mm, 6 Rails, Aluminium, Steel
- MPN: NSYMD108
- PPN: SCH-NSYMD108
CAD
$293.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Symmetrical mounting chassis for enclosures (S3D, S3X, PLM, CRN). (6 rails) 1000 x 800 mm. Vertical aluminium rails and 6 cross rails (symmetrical DIN). 2 uprights. Steel for rail, aluminum for uprights.
Documentation & Downloads
Specifications
Key Specifications
- Type Of Rail
- symmetrical DIN
- Range Compatibility
- Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X || Thalassa Thalassa PLM
- Quantity Per Set
- set of 1
- Device Composition
- fixing elements || 6 DIN rail || 2 upright
- Range
- Spacial
Mounting Supportdirect fixing on backstuds || step slide || spacer
Accessory / Separate Part Categorymounting accessory
Product Or Component Typechassis
Device Applicationmulti-purpose
Complementary
- Adjustment
- on step slides, type NSYSDCR…, pitch 12.5 mm
- Height
- real 939.3 mm || nominal 1000 mm
- Depth
- real 30 mm
Widthnominal 800 mm || real 750 mm
Materialuprights aluminium || rail steel
Fixing Modescrewed on backstuds || by fixing element
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
