Schneider Electric

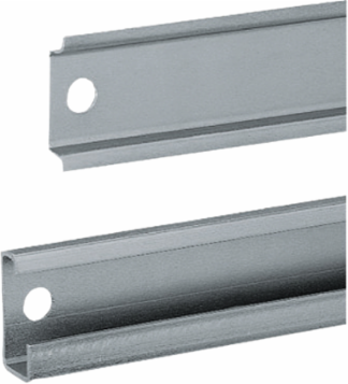

Schneider Electric NSYSDR100A One symmetric mounting rail 35x15 L1000mm type A Supply: 20

One symmetric mounting rail 35x15 L1000mm type A Supply: 20
One symmetric mounting rail 35x15 L1000mm type A Supply: 20
  • MPN: NSYSDR100A
  • PPN: SCH-NSYSDR100A

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$52.62/ EA

Description

Set of 20 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures. The rail is made from zinc coated 1.5mm zinc coated steel. The nominal width is 35mm. The nominal height is 15mm. The product nominal length is 1000mm and real length is 950mm. Fixed with a pitch of 25mm.

Specifications

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Adjustment
continuous adjustment, pitch 25 mm
Enclosure Nominal Dimensions
-, -
Local Publishable Date
2026-04-15
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Device Application
multi-purpose
Material
zinc coated steel
Product Or Component Type
rail
Range
PanelSeT
Surface Finish
zinc coated
Thickness
1.5 mm
Accessory Separate Part Category
mounting accessory
Pep Code
ENVPEP1001004EN
Pn
1
Length Total
nominal 1000 mm
Width Nominal
nominal: 35 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 1 rail
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Fixing Modeby fixing element - structure of enclosure
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 20
ReturnabilityNo
Sustainable PackagingNo
Type Of Railsymmetrical DIN
Warranty In Months18
Offer Owner Code190789
Height Nominalnominal: 15 mm
Length Usefulreal 950 mm

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Environmental Disclosure
ENVPEP1001004EN
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Type
rail

ETIM

ETIM 8
EC001285
ETIM 9EC001285

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
France
Length37.4 in
