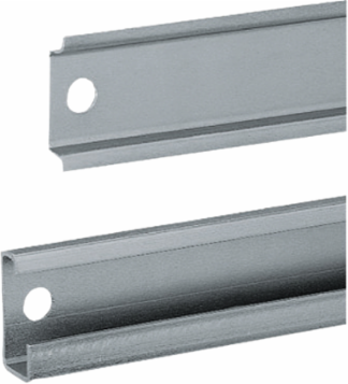

Schneider Electric NSYSDR50A Symmetrical Mounting Rail 35mm x 15mm x 500mm, Set of 20
- MPN: NSYSDR50A
- PPN: SCH-NSYSDR50A
CAD
$30.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this symmetrical mounting rail is an essential component for various electrical installations. Crafted from zinc-coated steel, it measures 35mm in width and 15mm in height, ensuring a robust structure that supports continuous adjustment with a pitch of 25mm. With a length of 500mm, this rail is ideal for wall mounting and is compatible with Schneider Electric's PanelSeT range, making it a perfect choice for panel builders and electrical engineers. Supplied in sets of 20, this product combines practicality with a straightforward installation process, providing reliable support for your electrical components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Length17.72 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Adjustment
- continuous adjustment, pitch 25 mm
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Material
- zinc coated steel
- Product Or Component Type
- rail
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Thickness
- 1.5 mm
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1001004EN
- Length Total
- nominal 500 mm
- Width Nominal
- nominal: 35 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 1 rail
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Fixing Modeby fixing element - structure of enclosure
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 20
ReturnabilityNo
Sustainable PackagingNo
Type Of Railsymmetrical DIN
Warranty In Months18
Height Nominalnominal: 15 mm
Length Usefulreal 450 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- rail
ETIM
- ETIM 8
- EC001285
ETIM 9EC001285
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
