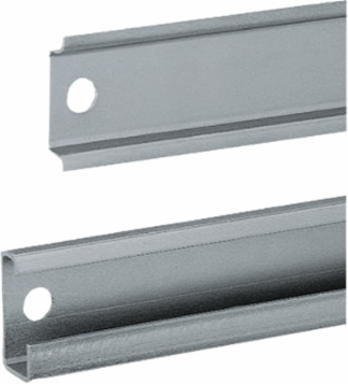

Schneider Electric NSYSDR60A Symmetrical Mounting Rail 600mm x 35mm x 15mm Zinc Coated Steel, Set of 20
Schneider Electric NSYSDR60A Symmetrical Mounting Rail 600mm x 35mm x 15mm Zinc Coated Steel, Set of 20
- MPN: NSYSDR60A
- PPN: SCH-NSYSDR60A
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$30.15/ EA
Description
Designed for versatility and durability, this symmetrical mounting rail from Schneider Electric is an essential component for any multi-purpose installation. Measuring 600mm in length, 35mm in width, and 15mm in height, this zinc-coated steel rail is built to withstand various environments while providing reliable support for your devices. With a continuous adjustment feature allowing for a pitch of 25mm, it seamlessly integrates into the PanelSeT range and is compatible with both the CRN and S3D models, ensuring a secure fit. Each set contains 20 rails, making it a practical choice for larger projects or installations, all backed by an 18-month warranty for peace of mind.
Features
- 2 types: Type A: 35 x 15 mm, Type B: 35 x 7.5 mm
- Material: Zinc-coated steel
- Standards: IEC 715
- Thickness: Type A: 15/10e mm, Type B: 10/10e mm
- Fixing: Fixed to mounting plates or another fixing elements, uprights not included in the supply
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rail
- Adjustment
- continuous adjustment, pitch 25 mm
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Fixing Mode
- by fixing element - structure of enclosure
- Package Weight Lbs
- 400.000 g
- Product Or Component Type
- rail
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Thickness
- 1.5 mm
- Medium Desc
- One symmetric mounting rail 35x15 L600mm type A - Wall mounting - Supply: 20
- Product Kit Identifier
- N
- Type Of Rail
- symmetrical DIN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Materialzinc coated steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 20
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1001004EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 0.59 in
- Length
- 21.65 in
Width1.38 in
