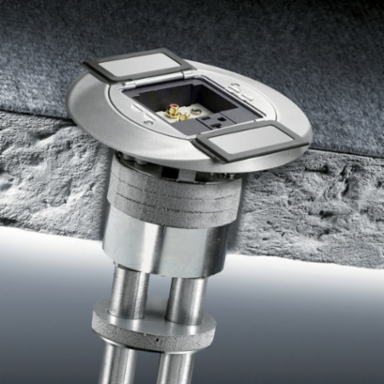

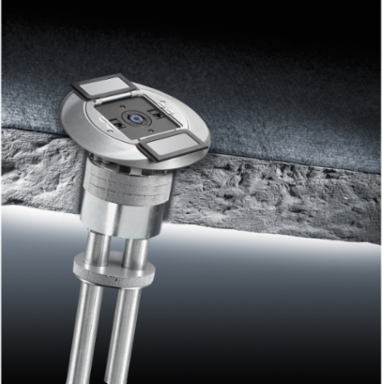

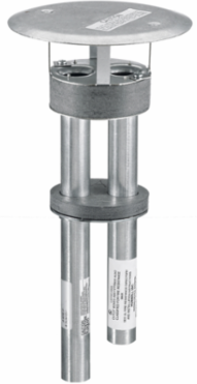

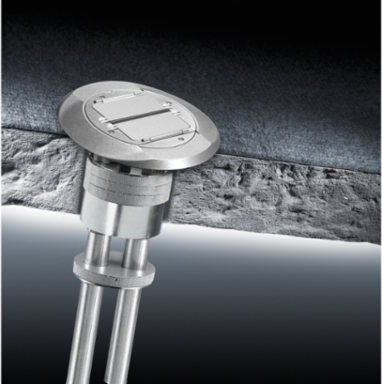

Hubbell Premise Wiring S1PTFIT Fire-Rated Poke-Through 4 Inch Fitting for (1) 1 Inch EMT Power & Low Voltage

MPN: S1PTFIT
UPC: 783585371023
PPN: HBL-S1PTFIT
UNSPSC: 39121328

$617.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

In-Floor Delivery Systems, SystemOne, Fire-Rated Poke-Through, 4" Fitting Only, (1) 1" EMT for Power, (1) 1" EMT for Low Voltage

Features

4" Fire-Rated Poke-Through
For use with Universal Flange/Cover Assemblies and Subplates
(1) 1" EMT for Power
(1) 1" EMT Stem for Low Voltage
Junction Box Sold Separately

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Core Hole	4 Inch
Industry Standard(s)	cULus Listed
Number of Outlet	No Devices
Number Of Outlets	No Devices
Description - Invoice	FRPT, THRU-FLOOR FTG. SYS 1
Harmonization Code	7326908688
MSDS Flag	No
Base Unit of Measure	EA
Carton - Gross Weight per Pack	9.024 lb.
Carton - Pack Description	Carton
Carton - Total Units	1
Each - Pack Description	Each
Pallet - GTIN - Package	70783585371022
Pallet Length	48.000 in
Pallet Width	40.000 in

Application - For Use On	Carpet/Tile
Width	9.200 in
Plate Style	Data/Power
Standard	cULus Listed
Style	FRPT Fittings
Freight Class Code	06168002
Image Actual Or Representative	A
Material - Mounting Hardware	Step-Down Installation
BOX SIZE	9.300x17.700x9.100 (in)
Carton - Number of Sub Packs	1
Carton - SCC-14 Next Lower Level Sub Pack	00783585371023
Case Weight	9.123 lb.
Lowest Level UOM	Each
Pallet Height	46.500 in
Pallet Weight	255.750 lb.
NAICS Code	3359326106
