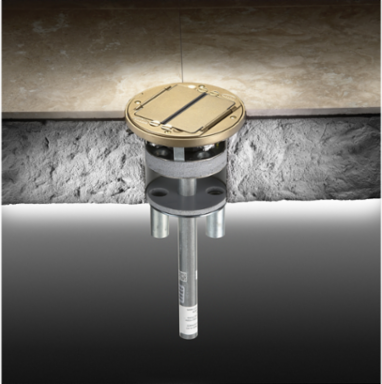

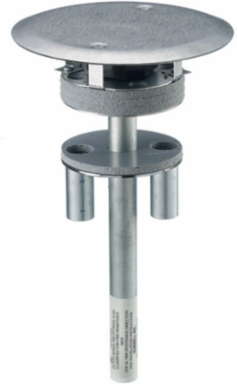

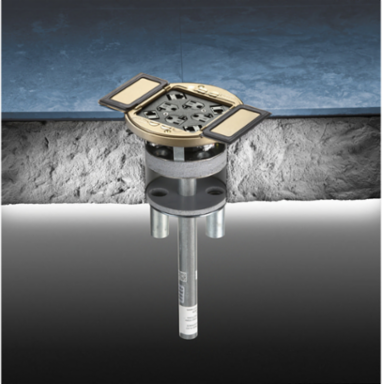

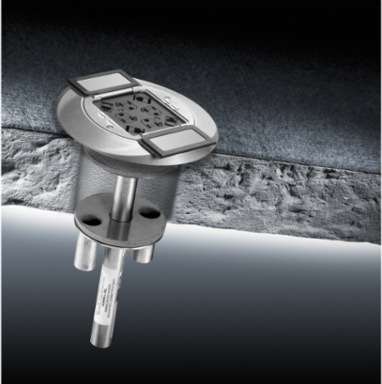

Hubbell Premise Wiring S1PT4X4FIT Fire-Rated Poke-Through 4 Inch Fitting for (1) 3/4 Inch EMT Power, (2) 3/4 Inch EMT Low Voltage

MPN: S1PT4X4FIT
UPC: 783585371399
PPN: HBL-S1PT4X4FIT
UNSPSC: 39121328

$617.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

In-Floor Delivery Systems, SystemOne, Fire-Rated Poke-Through, 4" Fitting Only, (1) 3/4" EMT for Power, (2) 3/4" EMTs for Low Voltage

Features

4" Fire-Rated Poke-Through
For use with Universal Flange/Cover Assemblies and Subplates
(1) 3/4" EMT for Power
(2) 3/4" EMT Stems for Low Voltage
Junction Box Sold Separately

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Core Hole	4 Inch
Industry Standard(s)	cULus Listed
Number of Outlet	(4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings
Number Of Outlets	(4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings
Description - Invoice	FRPT, 4X4 THRU-FLR., SYSTEM 1
Harmonization Code	7326908688
MSDS Flag	No
Base Unit of Measure	EA
Carton - Gross Weight per Pack	8.927 lb.
Carton - Pack Description	Carton
Carton - Total Units	1
Each - Pack Description	Each
Pallet - GTIN - Package	70783585371398
Pallet Length	48.000 in
Pallet Width	40.000 in

Application - For Use On	Carpet/Tile
Width	8.900 in
Plate Style	Data/Power
Standard	cULus Listed
Style	FRPT Fittings
Freight Class Code	06168002
Image Actual Or Representative	A
Material - Mounting Hardware	Step-Down Installation
BOX SIZE	9.200x17.700x9.100 (in)
Carton - Number of Sub Packs	1
Carton - SCC-14 Next Lower Level Sub Pack	00783585371399
Case Weight	3.760 lb.
Lowest Level UOM	Each
Pallet Height	46.000 in
Pallet Weight	203.500 lb.
NAICS Code	3359326106
