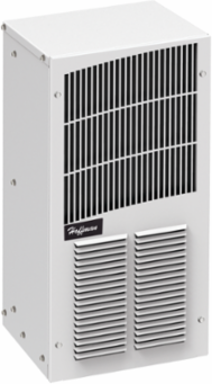

nVent Hoffman T200226G150 T-Series Compact Outdoor with Heat T20, 2000BTU 230V, Lt Gray, Steel
- MPN: T200226G150
- UPC: 783510231347
- PPN: HOF-T200226G150
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor with Heat T20, T200226G150 item is rated 2000BTU 230V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Btu/h | 2,000 |
| Number of Phases | 1 |
| Material | Mild Steel |
| Remote Access Control | No |
| Outdoor Installation | Yes |
| Product Family | T-Series |
| Width (W) | 254 |
| Color Code | RAL 7035 |
| NEMA Rating | 4 Watertight |
| Net Weight | 27 |
| Voltage Rating | 200 - 250 VAC |
| Amperage Rating | 3.5 Amp |
| Color | Gray |
| Nominal Capacity Watts | 586 |
|---|---|
| Nominal Voltage | 230 |
| Refrigerant | R134a |
| Operating Temperature | -40 |
| Finish | Powder Coated |
| Protection Rating | NEMA Type 4 |
| Height (H) | 508 |
| Depth (D) | 251 |
| Thickness (T) | 1.21 |
| Weight | 46.7 |
| Sub Brand | T-Series |
| BTU Rating | 2,000 |
| Frequency Rating | 50/60 Hz |
