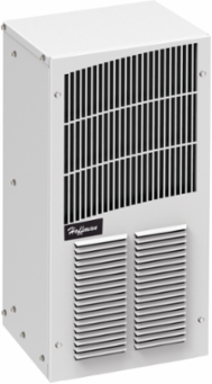

nVent Hoffman T200216G150 T-Series Compact Outdoor with Heat T20, 2000BTU 115V, Lt Gray, Steel
- MPN: T200216G150
- UPC: 783510222451
- PPN: HOF-T200216G150
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor with Heat T20, T200216G150 item is rated 2000BTU 115V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
- Item T150116G120 is only for indoor purpose
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 586
- Number of Phases
- 1
- Finish
- Powder Coated
- Width (W)
- 254
- Operating Temperature
- -40
- Remote Access Control
- No
- Product Family
- T-Series
- Thickness (T)
- 1.21
- Weight
- 47.1
- Voltage Rating
- 100 - 120 VAC
- Amperage Rating
- 7 Amp
- Color
- Gray
Nominal Capacity Btu/h2,000
Nominal Voltage115
MaterialMild Steel
Height (H)508
Depth (D)251
Max Current7
Protection RatingNEMA Type 4
Color CodeRAL 7035
NEMA Rating4 Watertight
Sub BrandT-Series
BTU Rating2,000
Frequency Rating50/60 Hz
