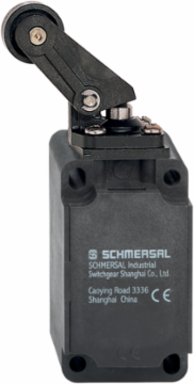

Schmersal 101101123 T3K 336-02ZH Position Switch, 132 g, IP65/IP67, Thermoplastic Enclosure, 10 A
- MPN: 101101123
- PPN: SCM-101101123
CAD
$108.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
T3K 336-02ZH Position Switch, 132 g, IP65/IP67, Thermoplastic Enclosure, 10 A
Features
- slim design
- 1 Cable entry M 20 x 1.5
- Design to EN 50041
- Actuation from bottom parallel to the switch, therefore only suitable for small housings.
- Thermoplastic enclosure
- Double-insulated
- Good resistance to oil and petroleum spirit
- Wide range of alternative actuators
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- Opener (NC)
- Bounce duration, maximum
- 2 ms
- Material of the contacts, electrical
- Silver
Required rated short-circuit current1,000 A
Utilisation category AC-154 A
Utilisation category DC-134 A
Switching principleSlow action with staggered contacts
Switching frequency5,000 /h
Mechanical data - Dimensions
- Length of sensor
- 38 mm
- Height of sensor
- 121.5 mm
Width of sensor53 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Safety functions
- Yes
Number of safety contacts2
General data
- Housing construction form
- Norm construction design
- Gross weight
- 132 g
Enclosure materialPlastic, glass-fibre-reinforced
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65 | IP67
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data

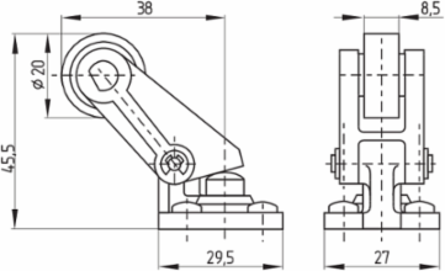

- Actuating element
- Angle roller lever
- Actuating force, minimum
- 17 N
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
Mechanical life, minimum30,000,000 Operations
Actuating speed, maximum0.5 m/s
Note (Switchover time)Switchover time in accordance with actuating speed
Approvals - Standards
- Certificates
- cULus | CCC
