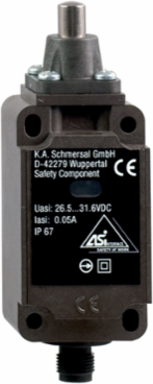

Schmersal 101213976 Safety Switch TR 336 ST-AS, 40.5 mm Width, Thermoplastic Enclosure, IP67
- MPN: 101213976
- PPN: SCM-101213976
CAD
$422.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Safety Switch TR 336 ST-AS, 40.5 mm Width, Thermoplastic Enclosure, IP67
Features
- AS-Interface M12 connector
- Thermoplastic enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit
- 40,5 mm x 96 mm x 38 mm
- Actuator heads can be repositioned by 4 x 90°
- Mounting details to EN 50047
- AS-Interface LED and status display
- Integrated AS-Interface
- Suitable for AS-i Power24
Documentation & Downloads
Specifications
Electrical data
- Current consumption
- 50 mA
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- Opener (NC)
- Switching frequency
- 5,000 /h
Thermal test current10 A
Utilisation category AC-154 A
Utilisation category DC-131 A
Switching principleSlow action
Material of the contacts, electricalSilver
Electrical data - AS-Interface specification
- AS-i Version
- V 3.0
- AS-i Input, Channel 1
- Data bits DI 0 / DI 1 = dynamic code transmission
- AS-i Outputs, DO 0 … DO 3
- No Function
- AS-i Parameter bits, P1 ... P3
- No function
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
AS-i ProfileS-0.B.F.F
AS-i Input, Channel 2Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Parameter bits, P0Channel 2 switched
AS-i Input module address0

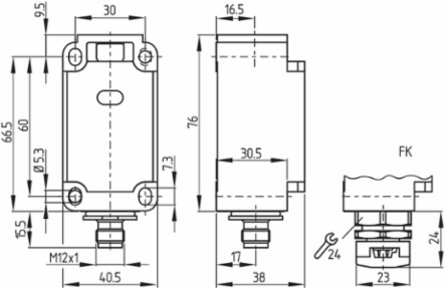

Mechanical data - Dimensions
- Length of sensor
- 38 mm
- Height of sensor
- 136.6 mm
Width of sensor40.5 mm
Pin assignment
- PIN 1
- AS-Interface +
- PIN 3
- AS-Interface -
PIN 2n.c.
PIN 4n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
Rated impulse withstand voltage U0.8 kV
General data - Features
- Safety functions
- Yes
- Number of safety contacts
- 2
Integral system diagnostics, statusYes
General data
- Standards
- EN 50295 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
- Actuator type to EN 50041
- C
- Gross weight
- 120 g
Housing construction formNorm construction design
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Safety classification
- Standards
- EN IEC 61508
- Category
- 1
- Note (PFH-value)
- up to max. 100,000 switching cycles/year
- Mission time
- 20 Year(s)
- Performance Level, up to
- d
- PFH value
- 1.01 x 10⁻⁷ /h
Performance Level, up toc
PFH value1.14 x 10⁻⁶ /h
Safety Integrity Level (SIL), suitable for applications in1
Please note:Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
Category3
Safety Integrity Level (SIL), suitable for applications in2
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm / 5 g
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole
Material of the connector (electrical)Metal film

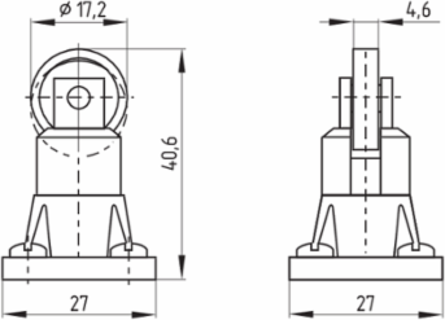

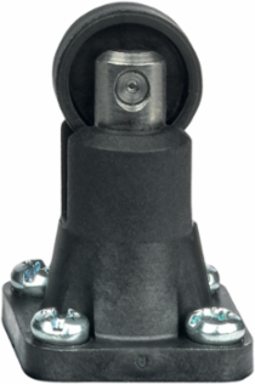

Mechanical data
- Actuating element
- Roller plunger
- Actuating speed, maximum
- 0.5 m/s
Mechanical life, minimum1,000,000 Operations
Note (Actuating speed)Actuating speed with actuating angle 30° to switch axis
Approvals - Standards
- Certificates
- cULus | ASi-SaW
Status indication
- Note (LED switching conditions display)
- (1) LED yellow: Channel 1 / AS-i SaW Bit 0.1 | (2) LED green-red (AS-i Duo LED):Supply voltage / Communication error / Slave address = 0 | (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
