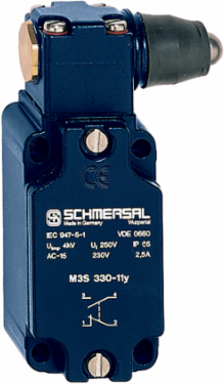

Schmersal 131168055 M3S Light Position Switch, IP65, Metal Enclosure, 1 NO & 1 NC Contacts
- MPN: 131168055
- PPN: SCM-131168055
CAD
$323.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
M3S Light Position Switch, IP65, Metal Enclosure, 1 NO & 1 NC Contacts
Features
- Metal enclosure
- Long life
- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
- with bellows to protect against heavy soiling
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Utilisation category AC-15
- 2.5 A
- Note (Switching element)
- galvanically separated contact bridges
- Bounce duration, maximum
- 1.5 ms
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Switching elementNO contact, NC contact
Switching principleSnap action
Switchover time, maximum10 ms

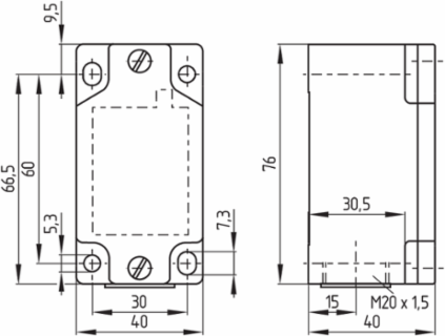

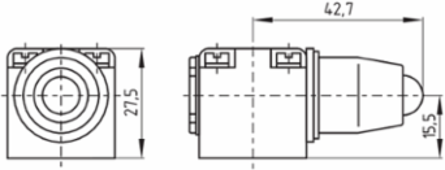

Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 103.5 mm
Width of sensor62.7 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 1
Number of normally open (NO)1
General data
- Standards
- EN IEC 60947-5-1
- Slide form
- Sphere
- Enclosure coating material
- painted
Working principlemechanical
Enclosure materialLight-alloy diecast, paint finish
Gross weight278 g
Ambient conditions
- Degree of protection
- IP65
- Restistance to shock
- 50 g / 6 ms
Ambient temperature-30 ... +90 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
- Wire cross-section
- 13 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Plunger
- Actuating force, minimum
- 17 N
- Actuating speed, minimum
- 1 mm/min
Mechanical life, minimum30,000,000 Operations
Contact opening2 x 0.5 mm
Repeat accuracy of switching points0.02 mm
Approvals - Standards
- Certificates
- cULus | CCC
