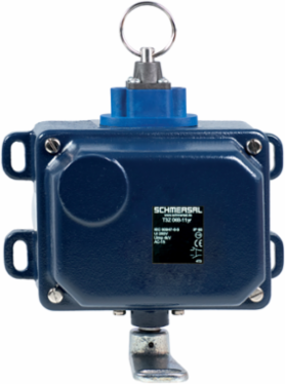

Schmersal 101087877 T3Z 068-11YR Pull-Wire Emergency Stop Switch, Metal Enclosure, 50 m Wire Length, IP65
- MPN: 101087877
- PPN: SCM-101087877
CAD
$1318.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
T3Z 068-11YR Pull-Wire Emergency Stop Switch, Metal Enclosure, 50 m Wire Length, IP65
Features
- Metal enclosure
- two-side operation / wire up to 2 x 50 m long
- Robust design
- Low actuating force
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 2.5 A |
| Utilisation category DC-13 | 6 A |
| Switching principle | Slow action |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |
| Switching element | NO contact, NC contact |
| Material of the contacts, electrical | Silver |
Note
| Note (General) | At 3 m distance intermediate wire supports are required, see accessories |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 250 VAC |
|---|
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 100,000 Operations |
|---|
General data - Features
| Reset by pull ring | Yes |
|---|---|
| Number of safety contacts | 1 |
| Number of auxiliary contacts | 1 |
|---|
General data
| Standards | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5 |
|---|---|
| Material of the housing cover | Grey cast iron, painted |
| Gross weight | 4,672 g |
| Enclosure material | Grey cast iron, painted |
|---|---|
| Length of the wire, maximum | 50 m |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP65 |
|---|
| Ambient temperature | -30 ... +90 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 1.5 mm² |
| Cable section, minimum | 0.75 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Actuating element | Roller lever N300 |
|---|---|
| Positive break angle | 32 ° |

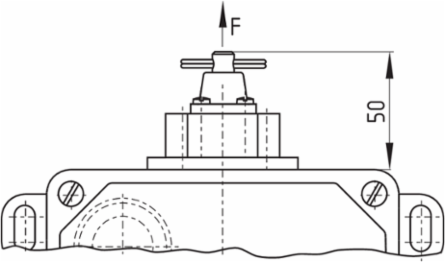

| Note (Actuating force) | 30 N in wire direction |
| Positive break force, minimum | 50 N |
| Mechanical life, minimum | 50,000 Operations |
|---|---|
| Actuating force, maximum | 50 N |
| Actuation direction | Each time 75° right-hand side and left-hand side rotation |
| Positive break torque | 0.2 Nm |
Approvals - Standards
| Certificates | TÜV | cULus | CCC |
|---|
