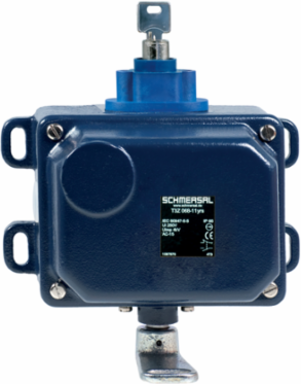

Schmersal 101087888 T3Z 068-33YRSG Pull-Wire Emergency Stop Switch, IP65, Maximum 50 m Wire Length
- MPN: 101087888
- PPN: SCM-101087888
CAD
$1797.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
T3Z 068-33YRSG Pull-Wire Emergency Stop Switch, IP65, Maximum 50 m Wire Length
Features
- 3 switches in one enclosure
- Metal enclosure
- two-side operation / wire up to 2 x 50 m long
- Robust design
- Low actuating force
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 2.5 A
- Utilisation category DC-13
- 6 A
- Switching element
- NO contact, NC contact
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Electrical power consumption5 W
Switching principleSlow action
Note
- Note (General)
- At 3 m distance intermediate wire supports are required, see accessories
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 100,000 Operations
General data - Features
- Indicator lamp
- Yes
- Number of auxiliary contacts
- 3

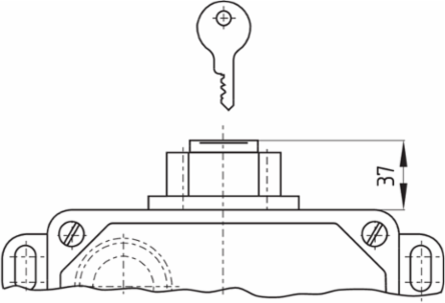

Key resetYes
Number of safety contacts3
General data
- Standards
- EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5
- Material of the housing cover
- Grey cast iron, painted
- Gross weight
- 5,125 g
Enclosure materialGrey cast iron, painted
Length of the wire, maximum50 m
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-30 ... +90 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Roller lever N300

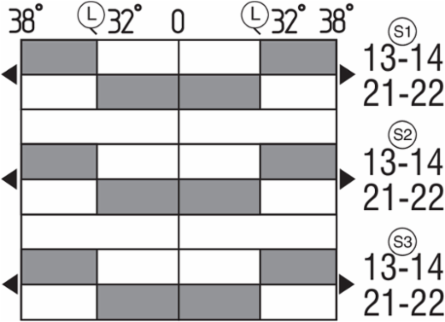

- Positive break angle
- 32 °
- Note (Actuating force)
- 30 N in wire direction
- Positive break force, minimum
- 50 N
Mechanical life, minimum50,000 Operations
Actuating force, maximum50 N
Actuation directionEach time 75° right-hand side and left-hand side rotation
Positive break torque0.2 Nm
Approvals - Standards
- Certificates
- TÜV | CCC
Status indication
- Colour of the indicator lamp
- Yellow
