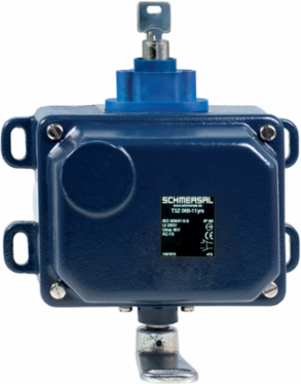

Schmersal 101087884 T3Z 068 Pull-Wire Emergency Stop Switch, IP65, 50 m Cable Length, 5,140 g Weight

MPN: 101087884
PPN: SCM-101087884

$1650.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

T3Z 068 Pull-Wire Emergency Stop Switch, IP65, 50 m Cable Length, 5,140 g Weight

Features

2 switches in one enclosure
Metal enclosure
two-side operation / wire up to 2 x 50 m long
Robust design
Low actuating force

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A
Utilisation category AC-15	2.5 A
Utilisation category DC-13	6 A

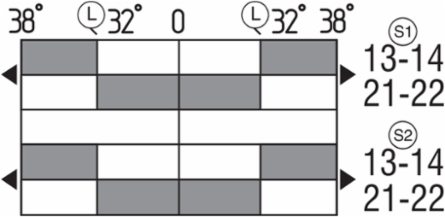

Switching element	NO contact, NC contact
Material of the contacts, electrical	Silver

Utilisation category AC-15	230 VAC
Utilisation category DC-13	24 VDC
Electrical power consumption	5 W
Switching principle	Slow action

Note

Note (General)	At 3 m distance intermediate wire supports are required, see accessories

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC

Rated impulse withstand voltage U	4 kV

Safety classification - Safety outputs

B	100,000 Operations

General data - Features

Indicator lamp	Yes
Number of auxiliary contacts	2

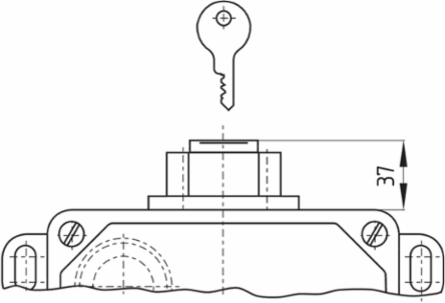

Key reset	Yes
Number of safety contacts	2

General data

Standards	EN ISO 13850 \| EN IEC 60947-5-1 \| EN IEC 60947-5-5
Material of the housing cover	Grey cast iron, painted
Gross weight	5,140 g

Enclosure material	Grey cast iron, painted
Length of the wire, maximum	50 m

Safety classification

Standards	EN ISO 13849-1

Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP65

Ambient temperature	-30 ... +90 °C

Mechanical data - Connection technique

Termination	Screw terminals M20 x 1.5
Cable section, maximum	1.5 mm²

Cable section, minimum	0.75 mm²
Note (Cable section)	All indications including the conductor ferrules.

Mechanical data

Actuating element	Roller lever N300
Positive break angle	32 °
Note (Actuating force)	30 N in wire direction
Positive break force, minimum	50 N

Mechanical life, minimum	50,000 Operations
Actuating force, maximum	50 N
Actuation direction	Each time 75° right-hand side and left-hand side rotation
Positive break torque	0.2 Nm
