Panduit T50T-Q T50T-Q Spiral Wrap, Natural, UV TFE, 0.375" Min Dia., PK1
Panduit T50T-Q T50T-Q Spiral Wrap, Natural, UV TFE, 0.375" Min Dia., PK1
- MPN: T50T-Q
- UPC: 074983705801
- PPN: PAN-T50T-Q
- UNSPSC: 39131604
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$739.07/ RL
Description

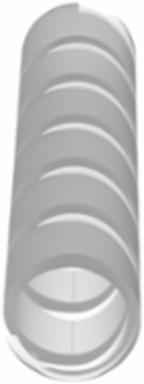

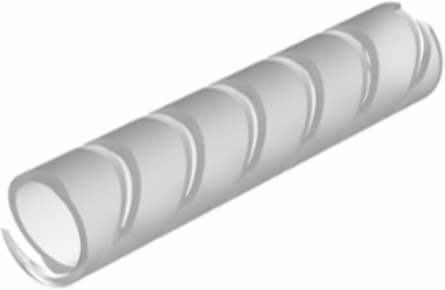

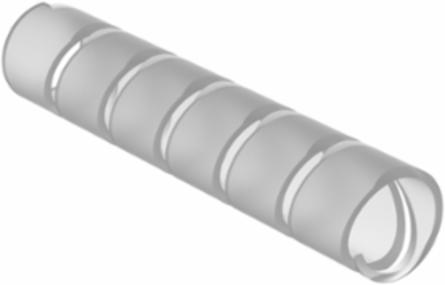

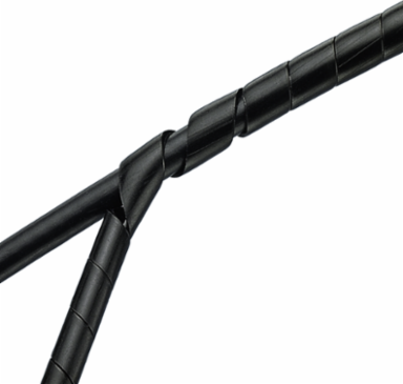

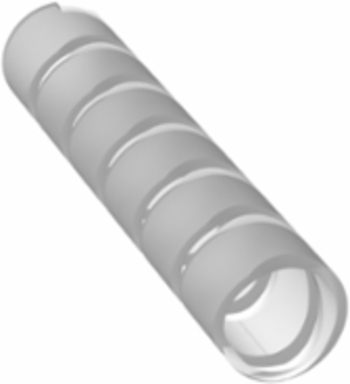

The T50T-Q TFE Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for use with irregular shapes. Temperature range -454°F (-270°C) to 500°F (260°C). 0.50" (12.7 mm) diameter x 25' (7.6 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Natural.
Specifications
Packaging Details
- UPC
- 07498370580
- Standard Package Volume Ft3
- 0.3970
- Std Package Height In
- 4.35
- Std Package Length In
- 14.6
- Std Package Width In
- 14.45
- Std. Pkg. UOM
- Roll
- Std. Pkg. Qty.
- 1
- Standard Carton Weight Pounds
- 0.0000
- Min. Order UOM
- Roll
- REACH Status
- N
- ARRA Compliant
- Y
- Lead Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 99
- Pallet Weight
- 212.8500
GTIN Package00074983705801
Standard Package Weight Pounds2.1500
Std Package Height MM110.49
Std Package Length MM370.84
Std Package Width MM367.03
UOM EA PKEA
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983705801
California Pro65 CancerNo
Mercury Content IndicatorN
Restricted Use of Hazardous SubstancesN
Min Order Qty1.0000
Pallet Volume0.000000
RoHS CompliantCompliant
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Maximum Operating Temperature (°C)
- 260
- Color
- Natural
- Wall Thickness (In.)
- 0.03
- Maximum Bundle Diameter (In.)
- 4
- Material
- TFE
- Overall Length (ft.)
- 25
- Wall Thickness (mm)
- 0.8
- Minimum Operating Temperature (°C)
- -270
- Overall Length (m)
- 7.62
- Outer Diameter (mm)
- 12.7
Any Reason Not to SellN
EnvironmentIndoor and Outdoor
ApplicationHarness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Minimum Operating Temperature (°F)-454
Product TypeSpiral Wrap
Flammability RatingUL94V-0
Outer Diameter (In.)0.5
Minimum Bundle Diameter (In.)0.375
Maximum Bundle Diameter (mm)101.6
Resistance PropertiesAbrasion-Resistant
Minimum Bundle Diameter (mm)9.5
Maximum Operating Temperature (°F)500
