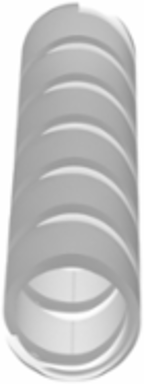

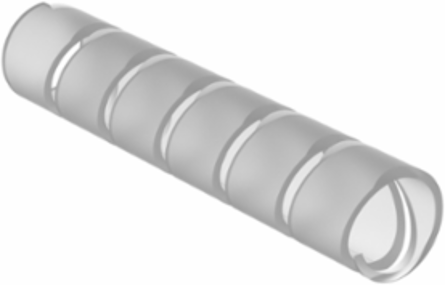

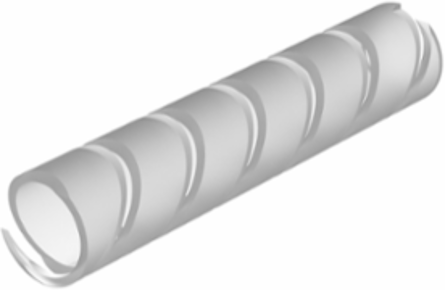

Panduit T50F-C T50F-C Spiral Wrap, Natural, PE, 0.375" Min Dia., 100' Roll, PK1
Panduit T50F-C T50F-C Spiral Wrap, Natural, PE, 0.375" Min Dia., 100' Roll, PK1
- MPN: T50F-C
- UPC: 074983699865
- PPN: PAN-T50F-C
- UNSPSC: 39131604
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$247.70/ RL
Description

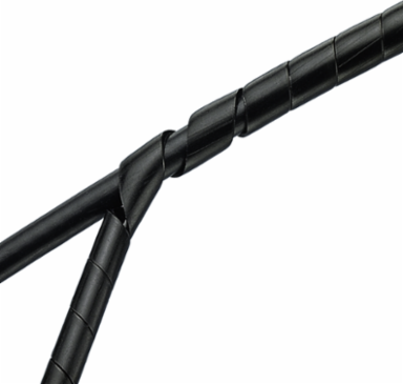

The T50F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.50" (12.7 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Natural.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Product Type
- Spiral Wrap
- Minimum Bundle Diameter (In.)
- 0.375
- Maximum Bundle Diameter (mm)
- 101.6
- Maximum Operating Temperature (°C)
- 50
- Material
- Polyethylene
- Maximum Bundle Diameter (In.)
- 4
- Resistance Properties
- Abrasion-Resistant
- Wall Thickness (mm)
- 1.5
- Flammability Rating
- UL94-HB
- Color
- Natural
Any Reason Not to SellN
Minimum Operating Temperature (°F)-40
Wall Thickness (In.)0.06
Minimum Operating Temperature (°C)-40
ApplicationHarness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Outer Diameter (mm)12.7
Outer Diameter (In.)0.5
Overall Length (ft.)100
Maximum Operating Temperature (°F)122
Minimum Bundle Diameter (mm)9.5
Overall Length (m)30.48
EnvironmentIndoor
Packaging Details
- UPC
- 07498369986
- Standard Package Volume Ft3
- 0.8359
- Std Package Height In
- 6.9
- Std Package Length In
- 14.55
- Std Package Width In
- 14.5
- Std. Pkg. UOM
- Roll
- Std. Pkg. Qty.
- 1
- Standard Carton Weight Pounds
- 0.0000
- Min. Order UOM
- Roll
- REACH Status
- N
- Mercury Content Indicator
- N
- Min Order Qty
- 1.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983699865
Standard Package Weight Pounds4.9000
Std Package Height MM175.26
Std Package Length MM369.57
Std Package Width MM368.3
UOM EA PKEA
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983699865
ARRA CompliantY
Hazardous Material FlagN
Pallet Quantity63
Pallet Weight308.7000
