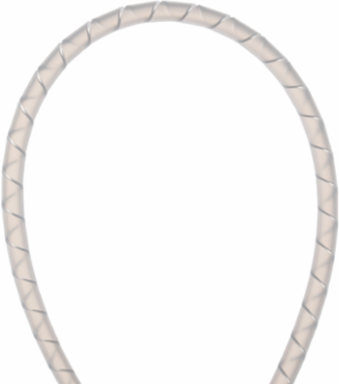

Panduit T25F-C T25F-C Spiral Wrap, Natural, PE, 0.1875" Min Dia., 100' Roll, PK1
- MPN: T25F-C
- UPC: 074983705542
- PPN: PAN-T25F-C
- UNSPSC: 39131604
CAD
$90.86
/ RL
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

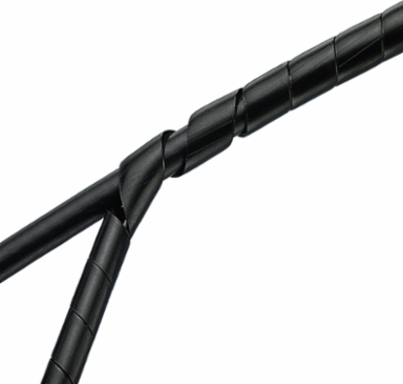

The T25F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Natural.
Documentation & Downloads
Specifications
Additional
- Minimum Operating Temperature
- -40 °F (-40 °C)
- Minimum Bundle Diameter
- 0.1875 in (4.8 mm)
- Outer Diameter
- 0.25 in (6.4 mm)
- Wall Thickness
- 0.04 in (1 mm)
- Color
- Natural
- Resistance Properties
- Abrasion-Resistant
- Country of Origin
- United States
Maximum Operating Temperature122 °F (50 °C)
Maximum Bundle Diameter2 in (50.8 mm)
Overall Length100 ft (30.48 m)
MaterialPolyethylene
Flammability RatingUL 94 HB
ComplianceUL Recognized E141152; RoHS Compliant; ARRA Compliant
EnvironmentIndoor
