Greenlee T200XMR-0435 Contact Voltage Detector, 4/35KV, 10 Inch Length, Audible and Visual Alerts
- MPN: T200XMR-0435
- UPC: 783310066651
- PPN: GRN-T200XMR-0435
- UNSPSC: 41113669
CAD
$2932.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Contact Voltage Detector, 4/35KV, 10 Inch Length, Audible and Visual Alerts
Features
- Direct contact solution to quickly test for the presence of voltage
- No on/off or range selector switches, always on.
- Clear indication of voltage detection with both audible and visual indications
- All Check" self test system verifies proper operation
- TAG 200X series for system voltages up to 69KV line to line

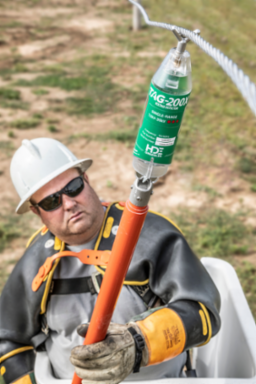

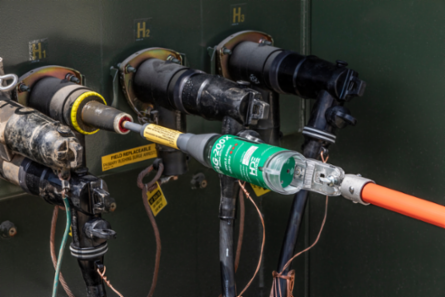

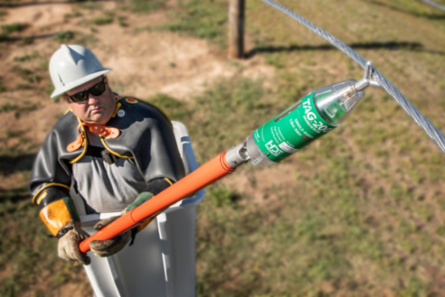

- Versitle for overhead and underground applications
- Built in universal spline and shotgun stick attachments
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Length | 10 IN / 254 MM |
| Weight | 0.86 LB / 0.39002 KG |
| Product Warranty | 12 |
| Max Operating Temperature | 120 F / 48.88889 C |
| Shape | Bottle |
| Power | DC |
| Sub Brand | Greenlee/HDE |
| Frequency Rating | 50Hz and 60Hz |
| Indication Type | Audible and visual alert |
| Overall Length | 10 in. |
| Width | 2.5 IN / 63.5 MM |
|---|---|
| Height | 3.7 IN / 93.98 MM |
| ECCN | EAR99 |
| Min Operating Temperature | 5 F / -15 C |
| Color | Green |
| Material | Plastic |
| Handle Type | Less Handles |
| Type | Contact Voltage Detector |
| Voltage Rating | 4KV & 35KV Line-to-Line |
| Model | TAG-200XMR |

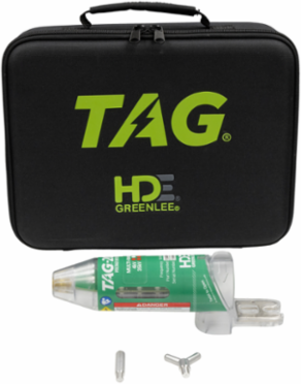

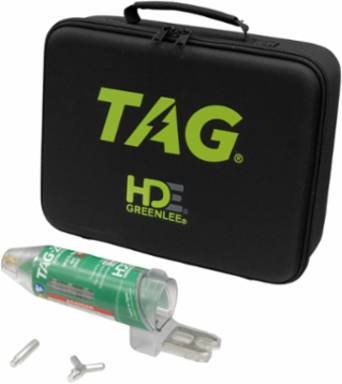

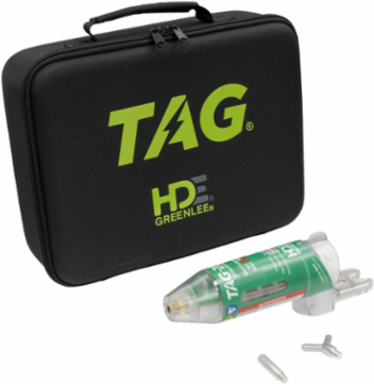

| Included | TAG-200XMR Detector, TAG-42029X Overhead "Y" Probe, TAG-41811X Overhead Straight Probe Small, CS-TAG200X Carrying Case, Instruction Manual |
Regulations
| SDS Required | No |
|---|---|
| CA Prop 65 Reproductive Harm | No |
| REACH Compliant | Yes |
| CA Prop 65 Cancer | No |
|---|---|
| RoHS Regulations | No |
| CA SCAQMD | No |
Battery Information
| Included | Yes 1 |
|---|---|
| Composition | Alkaline or Lithium |
| Packaging | Batteres packed with equipment |
| Required | Yes |
|---|---|
| Life | 10 hrs. Alkaline; 16 hrs. Lithium |
| Advertised Voltage | 9 |
