Brady 148701 TAGLOCK™ Circuit Breaker Lockout Device - 480/600V Clamp-On
Brady 148701 TAGLOCK™ Circuit Breaker Lockout Device - 480/600V Clamp-On
- MPN: 148701
- UPC: 754473581831
- PPN: BRD-148701
- UNSPSC: 39121901
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$27.48/ EA
Description

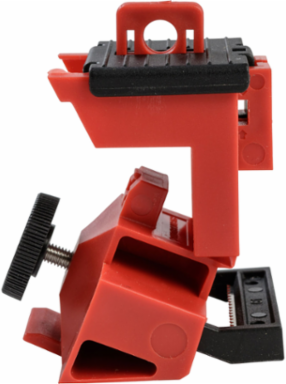

TagLock Circuit Breaker Securing Devices from Brady® allow up to four workers to individually tag and secure each circuit breaker with standard nylon cable ties.
Features

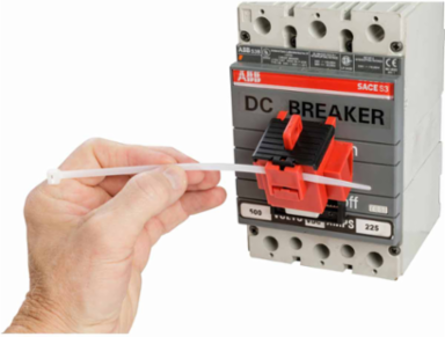

- Easily secure onto the breaker with nylon cable tie and worker’s ID tag, no lock needed
- ID tags can be pre-loaded onto TagLock devices, which are then quickly secured to the designated remote energy control lockout points

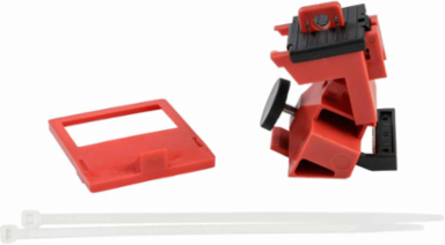

- Detachable cleat (included) expands the range of applicable breakers

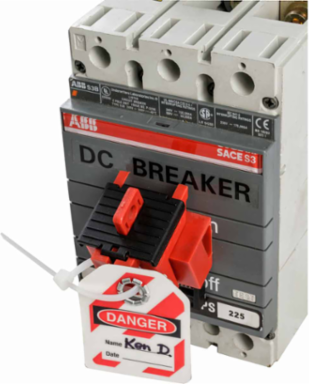

- Multiple workers can individually secure each TagLock by applying their nylon tie and unique ID tag
Specifications
Specifications
- Approval/Compliance
- OSHA 1910.147; CSA; ANSI Z244.1-2003
- Circuit Breaker Lockout Type
- Single-Pole
- Enables Industry Compliance
- CSA; OSHA 1910.147
- Language
- English
- Primary Noun, Basic Function
- Lockout Device
- Single-Pole Lockout Type
- Clamp-On
- Trade Name
- TagLock
- Brady Material Number
- LOTO-83
- SAP B-Number
- LOTO-83
- Depth (mm/cm/m)
- 94.56 mm
- Dimensions (Metric)
- 55.25 mm W x 48.07 mm H x 94.56 mm D
- Height (in/ft/yd)
- 1.892 in
- Maximum Service Temperature °C
- 80 °C
- Maximum Shackle Diameter (mm/cm/m)
- 7.37 mm
- Minimum Shackle Clearance (in/ft/yd)
- 0.5 in
- Sign Size-General
- 1.892 in x 2.175 in
- Size - Width (mm)
- 55.25 mm
- Width (in/ft/yd)
- 2.175 in
Brand NameBrady®
ColorRed
Includes1 TagLock Lockout for 480/600V Breakers
Maximum Number of Padlocks1
Risk TypeElectrical Risk
Total Qty per Pack1 Piece(s) / Piece
Adhesive (Y/N)No
MaterialFiberglass Reinforced Nylon; Polypropylene
Depth (in/ft/yd)3.723 in
Dimensions1.892 in H x 2.175 in W x 3.723 in D
Handle/Toggle Width (in/ft/yd)1.62 in
Height (mm/cm/m)48.07 mm
Maximum Shackle Diameter (in/ft/yd)0.29 in
Minimum Service Temperature °C-20 °C
Minimum Shackle Clearance - (mm/cm/m)12.70 mm
Size - W x H x D (mm)55.25 x 48.07 x 94.56
Voltage480/600 V
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
