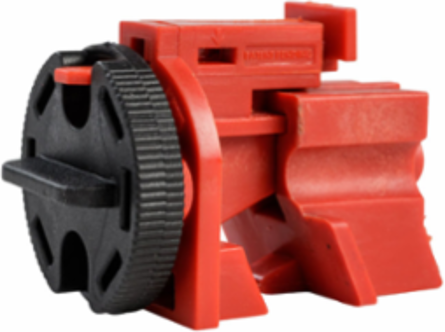

Brady 148702 TAGLOCK Circuit Breaker Lockout Device - Multi-Pole, 2.10 Inch Depth, Fiberglass Reinforced Nylon
- MPN: 148702
- UPC: 754473581923
- PPN: BRD-148702
- UNSPSC: 39121901
CAD
$22.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TagLock Circuit Breaker Securing Devices from Brady® allow up to four workers to individually tag and secure each circuit breaker with standard nylon cable ties.
Features

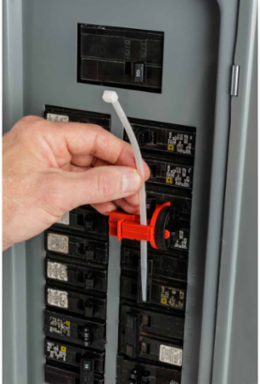

- Easily secure onto the breaker with nylon cable tie and worker’s ID tag, no lock needed
- ID tags can be pre-loaded onto TagLock devices, which are then quickly secured to the designated remote energy control lockout points
- Can be used with most multi-pole breakers that employ a tie bar

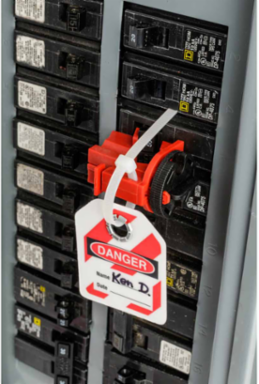

- Multiple workers can individually secure each TagLock by applying their nylon tie and unique ID tag
Documentation & Downloads
Specifications
Key Specifications
- Approval/Compliance
- OSHA 1910.147; CSA; ANSI Z244.1-2003
- Circuit Breaker Lockout Type
- Multi-Pole Tie Bar
- Enables Industry Compliance
- CSA; OSHA 1910.147
- Language
- English
- Primary Noun, Basic Function
- Lockout Device
- Single-Pole Lockout Type
- Grip-Tight Set
- Trade Name
- TagLock
- Brady Material Number
- LOTO-85
- SAP B-Number
- LOTO-85
- Dimensions
- 1.5 in H x 1.30 in W x 2.10 in D
- Height (in/ft/yd)
- 1.5 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Shackle Diameter (mm/cm/m)
- 7.37 mm
- Minimum Service Temperature °C
- -20 °C
- Minimum Shackle Clearance - (mm/cm/m)
- 12.70 mm
- Size - Width (mm)
- 33.00 mm
- Width (in/ft/yd)
- 1.30 in
Brand NameBrady®
ColorRed

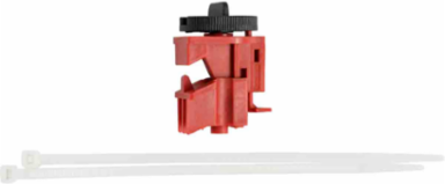

Includes1 TagLock Lockout for Multi-Pole Breakers
Maximum Number of Padlocks1
Risk TypeElectrical Risk
Total Qty per Pack1 Piece(s) / Piece
Adhesive (Y/N)No
MaterialFiberglass Reinforced Nylon
Depth (in/ft/yd)2.10 in
Dimensions (Metric)33.00 mm W x 62.20 mm H
Height (mm/cm/m)62.20 mm
Maximum Shackle Diameter (in/ft/yd)0.29 in
Minimum Application Temperature °C-20 °C
Minimum Shackle Clearance (in/ft/yd)0.5 in
Sign Size-General1.5 in x 1.30 in
Voltage120/277 V
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
