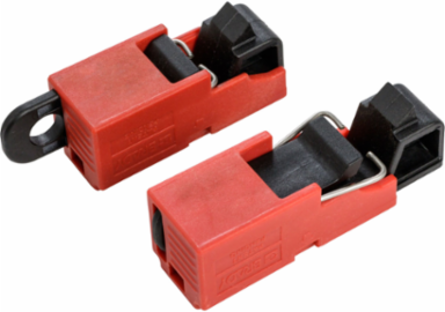

Brady 148700 TAGLOCK™ Circuit Breaker Lockout Devices - for 120V Breakers, 50/Pack
Brady 148700 TAGLOCK™ Circuit Breaker Lockout Devices - for 120V Breakers, 50/Pack
- MPN: 148700
- UPC: 754473581886
- PPN: BRD-148700
- UNSPSC: 39121901
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$905.72/ EA
Description

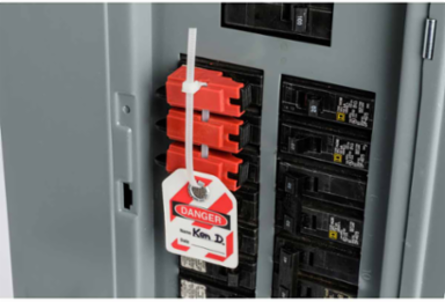

TagLock Circuit Breaker Securing Devices from Brady® allow up to four workers to individually tag and secure each circuit breaker with standard nylon cable ties.
Features

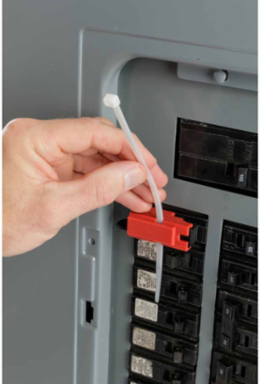

- Easily secure onto the breaker with nylon cable tie and worker’s ID tag, no lock needed
- ID tags can be pre-loaded onto TagLock devices, which are then quickly secured to the designated remote energy control lockout points
- Accommodating an exceptionally wide range of breaker models, Square D NQO and other breakers that have a hole in the switch tongue
- Multiple workers can individually secure each TagLock by applying their nylon tie and unique ID tag
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
Specifications
- Approval/Compliance
- OSHA 1910.147; CSA; ANSI Z244.1-2003
- Circuit Breaker Lockout Type
- Single-Pole
- Enables Industry Compliance
- CSA; OSHA 1910.147
- Language
- English
- Primary Noun, Basic Function
- Lockout Device
- Single-Pole Lockout Type
- Pin with Recessed Hole
- Trade Name
- TagLock
- Brady Material Number
- LOTO-86
- SAP B-Number
- LOTO-86
- Depth (mm/cm/m)
- 18.80 mm
- Dimensions (Metric)
- 23.70 mm W x 50.60 mm H x 18.80 mm D
- Height (in/ft/yd)
- 0.74 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Shackle Diameter (mm/cm/m)
- 7.37 mm
- Minimum Service Temperature °C
- -20 °C
- Minimum Shackle Clearance - (mm/cm/m)
- 12.70 mm
- Size - W x H x D (mm)
- 23.70 x 50.60 x 18.80
- Voltage
- 120/277 V
Brand NameBrady®
ColorRed

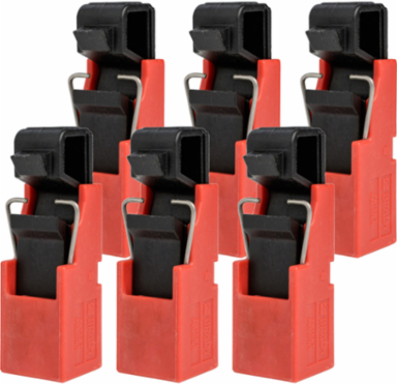

Includes50 TagLock Lockouts for 120V Breakers
Maximum Number of Padlocks1
Risk TypeElectrical Risk
Total Qty per Pack50 Piece(s) / Pack
Adhesive (Y/N)No
MaterialFiberglass Reinforced Nylon
Depth (in/ft/yd)2.446 in
Dimensions0.74 in H x 0.934 in W x 2.446 in D
Handle/Toggle Width (in/ft/yd)0.47 in
Height (mm/cm/m)50.60 mm
Maximum Shackle Diameter (in/ft/yd)0.29 in
Minimum Application Temperature °C-20 °C
Minimum Shackle Clearance (in/ft/yd)0.5 in
Sign Size-General0.74 in x 0.934 in
Size - Width (mm)23.70 mm
Width (in/ft/yd)0.934 in
