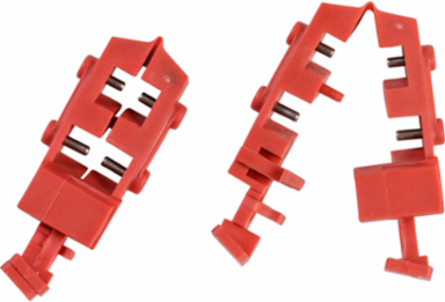

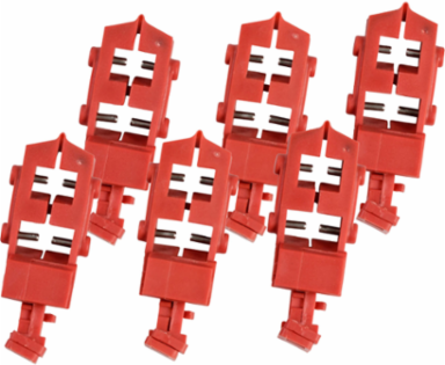

Brady 148694 TAGLOCK™ Circuit Breaker Lockout Devices - Snap-On, 50/Pack
Brady 148694 TAGLOCK™ Circuit Breaker Lockout Devices - Snap-On, 50/Pack
- MPN: 148694
- UPC: 754473582067
- PPN: BRD-148694
- UNSPSC: 39121901
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$482.69/ EA
Description
TagLock Circuit Breaker Securing Devices from Brady® allow up to four workers to individually tag and secure each circuit breaker with standard nylon cable ties.
Features
- Easily secure onto the breaker with nylon cable tie and worker’s ID tag, no lock needed
- ID tags can be pre-loaded onto TagLock devices, which are then quickly secured to the designated remote energy control lockout points

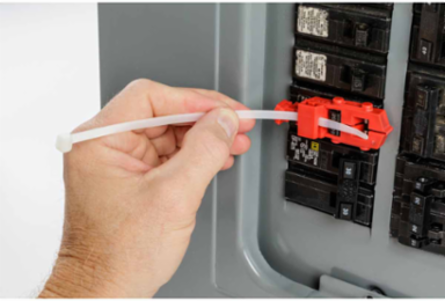

- Designed for snap-on installation on 120V circuit breakers that have holes in the switch tongue

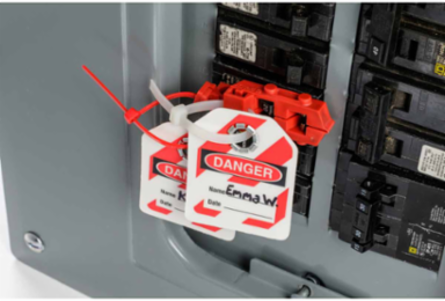

- Multiple workers can individually secure each TagLock by applying their nylon tie and unique ID tag
Specifications
Specifications
- Approval/Compliance
- OSHA 1910.147; CSA; ANSI Z244.1-2003
- Circuit Breaker Lockout Type
- Single-Pole
- Enables Industry Compliance
- CSA; OSHA 1910.147
- Language
- English
- Primary Noun, Basic Function
- Lockout Device
- Single-Pole Lockout Type
- Snap-On
- Trade Name
- TagLock
- Brady Material Number
- LOTO-87
- SAP B-Number
- LOTO-87
- Depth (mm/cm/m)
- 15.80 mm
- Dimensions (Metric)
- 25.60 mm W x 68.50 mm H x 15.80 mm D
- Height (in/ft/yd)
- 1.272 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Shackle Diameter (mm/cm/m)
- 7.37 mm
- Minimum Shackle Clearance (in/ft/yd)
- 0.5 in
- Sign Size-General
- 1.272 in x 1.006 in
- Size - Width (mm)
- 25.60 mm
- Width (in/ft/yd)
- 1.006 in
Brand NameBrady®
ColorRed
Includes50 TagLock Lockouts for 120V Breakers
Maximum Number of Padlocks1
Risk TypeElectrical Risk
Total Qty per Pack50 Piece(s) / Pack
Adhesive (Y/N)No
MaterialNylon
Depth (in/ft/yd)2.696 in
Dimensions1.272 in H x 1.006 in W x 2.696 in D
Handle/Toggle Width (in/ft/yd)0.47 in / 0.63 in
Height (mm/cm/m)68.50 mm
Maximum Shackle Diameter (in/ft/yd)0.29 in
Minimum Service Temperature °C-20 °C
Minimum Shackle Clearance - (mm/cm/m)12.70 mm
Size - W x H x D (mm)25.60 x 68.50 x 15.80
Voltage120 V
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
