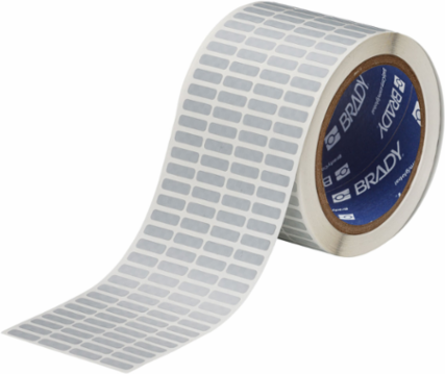

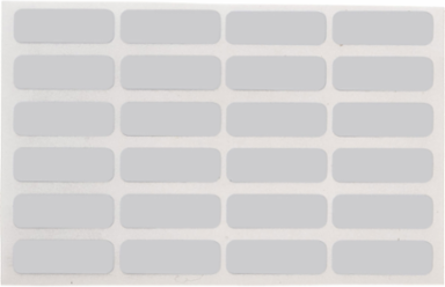

Brady THT-14-438-10 Tamper Evident Checkerboard Polyester labels, 0.2" H x 0.65" W, 10000 Labels
- MPN: THT-14-438-10
- UPC: 662820301783
- PPN: BRD-THT-14-438-10
- UNSPSC: 55121612
CAD
$596.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-438 Metallized Polyester Labels have a permanent adhesive that leaves a checkerboard footprint if removed.
Features
- Designed for rating and serial plates requiring both high-performance and protection against removal
- Ideal for product labeling, asset tracking and general industrial ID
- Withstands solvents and variable temperatures
- Requires minimal handling in order to prevent prematurely exposed checkerboard pattern
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Security Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 4
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300; R4500
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- Defender
- Brady Material Number
- B-438
- Material
- Tamper-evident Metallized Polyester
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 16.51 mm W x 5.08 mm H
- Height (in/ft/yd)
- 0.2 in
- Horizontal Repeat (mm)
- 17.78 mm
- Maximum Service Temperature °C
- 40 °C
- Minimum Service Temperature °C
- -40 °C
- Printable Area Dimensions (Metric)
- 5.08 mm H x 16.51 mm W
- Printable Area Width (mm/cm/m)
- 16.51 mm
- Size - Width (mm)
- 16.51 mm
- Thickness (mm/cm/m)
- 0.084 mm
- Vertical Repeat (mm)
- 7.62 mm
- Width (in/ft/yd)
- 0.65 in
Brand NameBrady®
ColorSilver
DiagramIcon 26 (hexagon)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll10000
Recommended RibbonIP-R6002; R6002
ShapeRectangle
Tamper Indication TypeTamper-evident
Total Quantity10000
Adhesive TypeTamper-evident Acrylic
Label PropertiesMetallic Labels; Permanent Adhesive Labels; Tamper Evident Labels
Material PropertiesMetallic Appearance; Tamper-evident
SAP B-NumberB-438
Dimensions0.2 in H x 0.65 in W
Dimensions 20.2 in H x 0.65 in W
Height (mm/cm/m)5.08 mm
Label/Tape Size (in/ft/yd)0.2 in H x 0.65 in W
Maximum Service Temperature °F104 °F
Minimum Service Temperature °F-40 °F
Printable Area Height (mm/cm/m)5.08 mm
Sign Size-General0.2 in x 0.65 in
Thickness (in/ft/yd)0.0033 in
Vertical Repeat0.3 in
Web Width (mm/cm/m)74.93 mm
Width (mm/cm/m)16.51 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
