Brady THT-19-438-1 Tamper Evident Checkerboard Polyester labels, 2" H x 3" W, Roll of 1000 Labels
- MPN: THT-19-438-1
- UPC: 662820301844
- PPN: BRD-THT-19-438-1
- UNSPSC: 55121612
CAD
$539.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

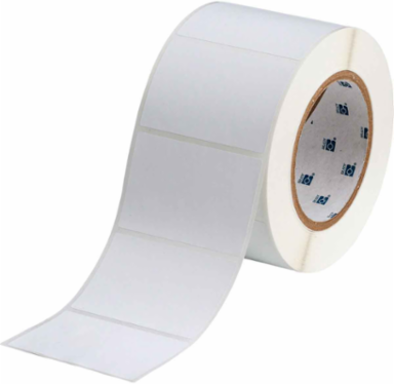

Printable, tamper-evident, metallized polyester labels for thermal transfer printers.
Features
- Use in rating and serial plates that require high performance and evidence of label removal
- Designed to leave a "checkerboard" footprint when the label is removed
- Checkerboard pattern appears on the top surface of the label in order to prevent it from being reused
- Requires minimal handling in order to prevent prematurely exposed "checkerboard" pattern
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Security Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300; R4500
- Total Qty per Pack
- 1000 Label(s) / Roll
- Trade Name
- Defender
- Brady Material Number
- B-438
- Material
- Tamper-evident Metallized Polyester
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 76.20 mm W x 50.80 mm H
- Height (in/ft/yd)
- 2 in
- Label/Tape Size (in/ft/yd)
- 2 in H x 3 in W
- Maximum Service Temperature °F
- 104 °F
- Minimum Service Temperature °F
- -40 °F
- Printable Area Height (mm/cm/m)
- 50.8 mm
- Sign Size-General
- 2 in x 3 in
- Thickness (in/ft/yd)
- 0.0033 in
- Vertical Repeat
- 2.125 in
- Web Width (mm/cm/m)
- 81.28 mm
- Width (mm/cm/m)
- 76.2 mm
Brand NameBrady®
ColorSilver
DiagramIcon 3 (triangle)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll1000
Recommended RibbonIP-R6002; R6002
ShapeRectangle
Tamper Indication TypeTamper-evident
Total Quantity1000
Adhesive TypeTamper-evident Acrylic
Label PropertiesMetallic Labels; Permanent Adhesive Labels; Tamper Evident Labels
Material PropertiesMetallic Appearance; Tamper-evident
SAP B-NumberB-438
Dimensions2 in H x 3 in W
Dimensions 22 in H x 3 in W
Height (mm/cm/m)50.80 mm
Maximum Service Temperature °C40 °C
Minimum Service Temperature °C-40 °C
Printable Area Dimensions (Metric)50.8 mm H x 76.2 mm W
Printable Area Width (mm/cm/m)76.2 mm
Size - Width (mm)76.20 mm
Thickness (mm/cm/m)0.084 mm
Vertical Repeat (mm)53.98 mm
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
