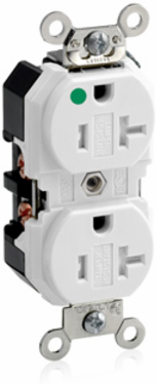

Leviton 8300-SGW 20 Amp Hospital Grade Duplex Receptacle, Tamper-Resistant, Nylon, NEMA 5-20R
- MPN: 8300-SGW
- UPC: 078477057193
- PPN: LEV-8300-SGW
CAD
$58.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Standards and Certifications | UL/CSA |
| UL498HG | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| RoHS | Compliant |
| UL Fed Spec WC-596 | File E13399 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Current Limiting | Full Rated Current |
| Face Material | Nylon |
| Grounding | Self-Grounding |
| Line Contacts | Nickel-Plated Brass Triple-Wipe .031 Thick |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Yoke | Nickel-Plated Brass |
| Clamp Nuts | Nickel-Plated Brass |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Ground Clips | Nickel-Plated Brass |
| Grounding Screw | Nickel-Plated Brass 8-32 |
| Strap Material | Nickel Plated Brass |
| Terminal Screws | Nickel-Plated Brass 10-32 |
Mechanical Specifications
| ANSI | C-73 |
|---|---|
| NOM | 057 |
| RoHS | Compliant |
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| UL498HG | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| UL Fed Spec WC-596 | File E13399 |
Product Features
| Feature | Tamper-Resistant|Smooth Face |
|---|
Warranty
| Horsepower Rating | 1 HP |
|---|
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Color | White |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| NEMA | 5-20R |
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Grade | Extra Heavy-Duty Hospital Grade |
| Operating Temperature | -40°C to 60°C |
Electrical Specifications
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
AC Horsepower Ratings
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Grounding Screw | Nickel-Plated Brass 8-32 |
| Line Contacts | Nickel-Plated Brass Triple-Wipe .031 Thick |
| Yoke | Nickel-Plated Brass |
| Clamp Nuts | Nickel-Plated Brass |
|---|---|
| Ground Clips | Nickel-Plated Brass |
| Horsepower Rating | 1 HP |
| Terminal Screws | Nickel-Plated Brass 10-32 |
