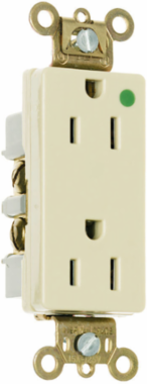

Pass & Seymour TR26262HGI Tamper-Resistant Hospital Grade Receptacle 15A 125V Ivory 2.635 Inch Height
- MPN: TR26262HGI
- UPC: 785007277395
- PPN: P-S-TR26262HGI
CAD
$34.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Hospital Grade Receptacle 15A 125V Ivory 2.635 Inch Height
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Width
- 1.322 in
- Country of Origin
- Mexico
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Outlet Type
- Hospital Grade
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
ColorIvory
Product LinePass & Seymour
PhaseThree
Amperage15.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of Receptacles2.0
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
FeaturesSingle Piece Plated Steel Mounting Strap
