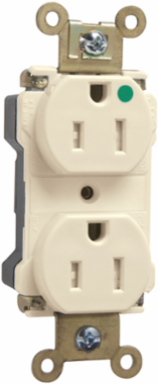

Pass & Seymour PTTR62HI Extra Heavy Duty Hospital Grade Tamper-Resistant Receptacle 15A 125V Ivory 1.5 Inch Width
- MPN: PTTR62HI
- UPC: 785007860498
- PPN: P-S-PTTR62HI
CAD
$62.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Extra Heavy Duty Hospital Grade Tamper-Resistant Receptacle 15A 125V Ivory 1.5 Inch Width
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Extra heavy-duty 0.050'' thick brass mounting strap for superior performance and durability.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.875 in
- Phase
- Three
- Amperage
- 15.0 A
- Country of Origin
- United States
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back Only
- NEMA Configuration Code
- 5-15R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Special Features
- Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
- Product Line
- Pass & Seymour
Height2.75 in
Width1.5 in
StandardUL 498
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Outlet TypeHospital Grade
Outlet TypeTamper-Resistant
Application SectorHealthcare
FeaturesBrass Mounting Strap
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
ColorIvory
