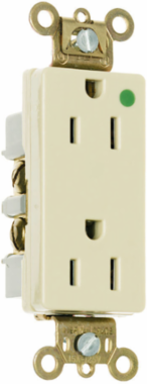

Pass & Seymour TR26262HGLA Tamper-Resistant Heavy Duty Hospital Grade Receptacle, 15A, 125V, Light Almond, 2.635 Inch Height, 1.322 Inch Width
- MPN: TR26262HGLA
- UPC: 785007277418
- PPN: P-S-TR26262HGLA
CAD
$34.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Heavy Duty Hospital Grade Receptacle, 15A, 125V, Light Almond, 2.635 Inch Height, 1.322 Inch Width
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Phase
- Three
- Amperage
- 15.0 A
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Outlet Type
- Hospital Grade
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
- Product Line
- Pass & Seymour
Height2.635 in
Width1.322 in
Country of OriginMexico
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of Receptacles2.0
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
FeaturesSingle Piece Plated Steel Mounting Strap
ColorLight Almond
