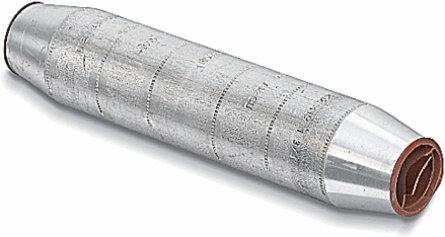

Blackburn ATC 3/0 TN Tin-Plated Aluminum Tapered Splice for 3/0 Conductors, 3 Inch Long
Blackburn ATC 3/0 TN Tin-Plated Aluminum Tapered Splice for 3/0 Conductors, 3 Inch Long
- MPN: ATC 3/0 TN
- PPN: T-B-ATC 3/0 TN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$88.26/ EA
Description
Tin-Plated Aluminum Tapered Compression Splice for Aluminum and Copper Conductors, 3/0 Stranded
Features
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Solid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Tin-Plated
IGCC4669 Wire or cable compression splice
TypeTapered Splice
ApplicationTapered ends enable use in High-Voltage Applications up to 69kV.
Size3 inch long
Conductor RangeConcentric 3/0
MaterialAluminum
InsulationNone
Packaging
- Outer Quantity
- 50
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)6x3.5x6
