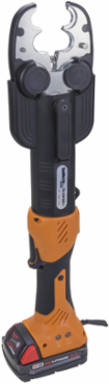

ILSCO TB-6WO500-IX Taskmaster 6 Ton Battery Hydraulic In-Line Dieless Crimping Tool With O-Nose Jaw Without Battery and Charger
- MPN: TB-6WO500-IX
- UPC: 783669014914
- PPN: ILC-TB-6WO500-IX
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Taskmaster 6 Ton Battery Hydraulic In-Line Dieless Crimping Tool With O-Nose Jaw Without Battery and Charger
Documentation & Downloads
Specifications
Key Specifications
- Height
- 4.5 in
- Weight
- 8.25 lbs
Length22.5 in
Width14 in
Voltage
- Voltage Rating
- 75 kV
Dimensions
- Height BX (IN)
- 5
- Width BX (IN)
- 14.5
Weight BX (LB)8.45
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Additional Class Attributes
- Body Type
- Inline
- Crimp Style
- Die taking
- Handle Type
- Cushion grip
- Includes
- Tool, Crimp head, Shoulder strap, Durable carrying bag, Instruction manual, USB Cord
- Max Lug Size AL
- 350 kcmil AL
- Number Of Batteries
- 0
- Rotation
- 350° tool head rotation
- Type of Accessory
- O-Nose Die
- With automatic return
- Yes
Compression shapeDie taking
FunctionCrimp
Heads ExchangeableYes
Inserts ExchangeableYes
Max Lug Size CU500 kcmil CU
Number of included inserts0
Storage SpecificationNon-humid environment
Warranty5 Year
Material and Finish
- Handle Insulation
- Yes
- Jaw Material
- Steel
Handle MaterialPlastic
MaterialPlastic, Steel
Additional Technical Specifications
- Charge Indicator
- LED battery
- Energized Line Tested
- Yes
- Power Source
- Battery-powered Hydraulic
Crimping Capacity4/0 - 4/0 AL Max H-Tap, 8 AWG - 500 kcmil CU, 8 AWG - 350 kcmil AL
Force6 tons
General
- Bag Quantity
- 1
- NEMA Code
- S-575-2
Carton Quantity DescriptionSTD PACK QTY 1
UPC Code78366901491
Color
- Handle Color
- Black, Orange
Environment and Temperature
- Operating Temperature
- -4°F to 122°F
