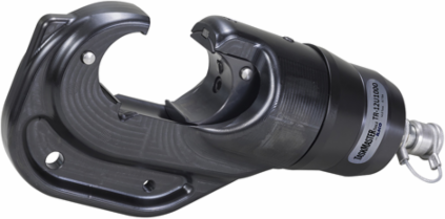

ILSCO TR-12U1000 Taskmaster Remote Hydraulic Crimping Head, Includes Plastic Carrying Case and Instruction Manual, Crimping Capacity 1000-8 CU,750-8 AL
- MPN: TR-12U1000
- UPC: 783669015164
- PPN: ILC-TR-12U1000
CAD
$3248.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Taskmaster Remote Hydraulic Crimping Head, Includes Plastic Carrying Case and Instruction Manual, Crimping Capacity 1000-8 CU,750-8 AL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 5 in
- Weight
- 9.7 lbs
Length16.5 in
Width14.5 in
Dimensions
- Height BX (IN)
- 6
- Jaw Opening (mm)
- 41.91
- Width BX (IN)
- 18
Jaw Opening (IN)1.65
Weight BX (LB)9.9
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Additional Class Attributes
- Compression shape
- Die taking
- For Use With (AL)
- ALNS, ALND, ALNN, IACL, 2IACL, 2ACL, 2ACN, ACL, CAN, ASN, AS, CPM, CPML, ACO-90, ACM, ACO, AH 1-4, HT
- Function
- Crimp
- Inserts Exchangeable
- Yes
- Max Lug Size CU
- 1000 kcmil CU
- Type of Accessory
- U-type Dies
Crimp StyleDie taking
For Use With (CU)CLN4, CLN9, CLND, CLWU, CLNF, CLNN, CLNS, CLNU, CLWD, CLW4, CLW9, CLWN, CLWS, CSND, CSNF, CSNS, CSLT, CSWD, CSWN, CSWS, CSW4, CSW9, CT, CTL, GGA, GGB, ELT, GGC, ULT, RLT
IncludesDurable plastic carrying case, Instruction manual
Max Lug Size AL750 kcmil AL
Number of included inserts0
Warranty5 Year
Material and Finish
- Jaw Material
- Steel
MaterialSteel
Additional Technical Specifications
- Crimping Capacity
- 8 AWG - 1000 kcmil CU, 8 AWG - 750 kcmil AL
- Power Source
- Remote hydraulic
Force14.6 tons
General
- Bag Quantity
- 1
- NEMA Code
- S-575-3
Carton Quantity DescriptionSTD PACK QTY 1
UPC Code78366901516
