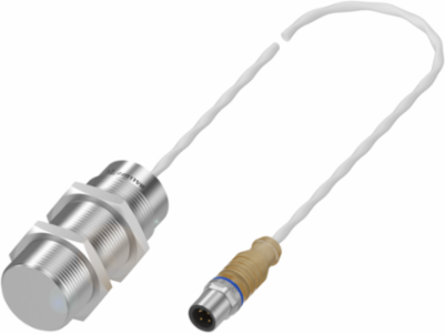

Balluff BES M30N1-PSC10B-GT05-T Temperature-rated inductive sensors BES M30N1-PSC10B-GT05-T
- MPN: BES M30N1-PSC10B-GT05-T
- PPN: BAL-BES05N5
CAD
$1344.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our temperature-rated sensors are designed for temperatures up to 230 °C: both the housing design and the cable design are optimized for higher temperatures. The electronics are completely integrated. Some variants are also available as high pressure sensors, which makes using them even more flexible.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | Ø 30 x 74 mm |
|---|---|
| Installation | for flush mounting |
| Switching output | PNP Normally open (NO) |
| Housing material | Stainless steel |
| Connection | Connector, M12x1, 4-pin, 5.0 m, PTFE |
| Ambient temperature | 0-230 °C |
| Approval/Conformity | CE, EAC, WEEE |
| Style | M30x1.5 |
|---|---|
| Range | 10 mm |
| Switching frequency | 9 Hz |
| Material sensing surface | LCP |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP50 |
