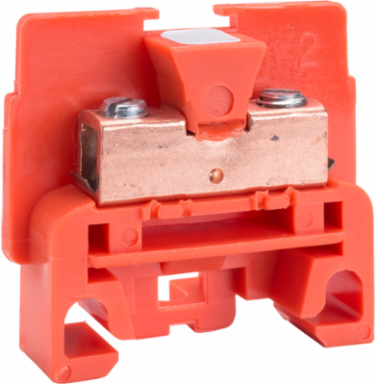

Square D 9080GKS6 Linergy Terminal Block, 40A, 600V, Orange with Copper Box Lugs
- MPN: 9080GKS6
- UPC: 785901744504
- PPN: SCH-9080GKS6
- UNSPSC: 39121410
CAD
$5.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in orange. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
Documentation & Downloads
Specifications
Key Specifications
| Width | 1.4 in |
|---|---|
| Color | Orange |
| Localisation On Device | standard |
| Product Or Component Type | terminal block |
| Height | 1.39 in |
|---|---|
| Range Of Product | 9080G |
| Quantity Per Set | set of 50 |
Complementary
| Number Of Terminal Blocks | 35 per foot |
|---|---|
| Ambient Air Temperature For Operation | -40-257 °F |
| Connections - Terminals | lug copper 11-12 lbf.in : AWG 22...AWG 10 copper) |
| Electrical Connection | copper box lugs |
| Awg Gauge | AWG 22...AWG 10 copper |
| Depth | 0.35 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Product Certifications | CE || CSA file 62144 class 6228 01 || UL recognized E60616 CCN XCFR2 |
|---|---|
| Height | 1.39 in |
| Mounting Support | panel || 9080GH track |
| Line Rated Current | 40-40 A CSA || 70-70 A UL |
| Width | 1.4 in |
| Product Compatibility | GK6B |
Offer Sustainability
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Rohs Exemption Information | Yes |
|---|---|
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Contractual warranty
| Warranty | 18 months |
|---|
