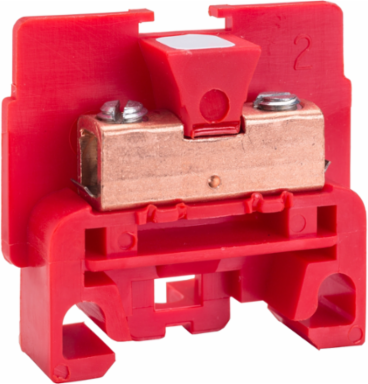

Square D 9080GKR6 Linergy Terminal Block, Red, 40A, 600V, 1.4 Inch Width
- MPN: 9080GKR6
- UPC: 785901743408
- PPN: SCH-9080GKR6
CAD
$5.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from 22 through 10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 10 AWG, 1 or 2 12 AWG, 1 or 2 14 AWG, 1 to 4 16 AWG, 1 to 5 18 AWG, 1 to 8 20 AWG or 1 to 10 22 AWG wires. The nylon block is molded in red. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth0.35 in
Physical Attributes
- Color
- Red
Complementary Attributes
- Line Rated Current
- 40-40 A CSA70-70 A UL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- panel, 9080GH track
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Connection
- copper box lugs
- Localisation On Device
- standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 50
- Returnability
- No
- Height Nominal
- 1.39 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, CSA file 62144 class 6228 01, UL recognized E60616 CCN XCFR2
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1918
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge22 AWG...10 AWG copper
Energy Efficiency OptimizedFalse
Number Of Terminal Blocks35 per foot
Product Or Component Typeterminal block
Range Of Product9080G
Sustainable PackagingNo
Width Nominal1.4 in
Connections - Terminalslug copper 11-12 lbf.in : 22 AWG...10 AWG copper)
Package Weight(Lbs)16.783 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- GK6B
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
