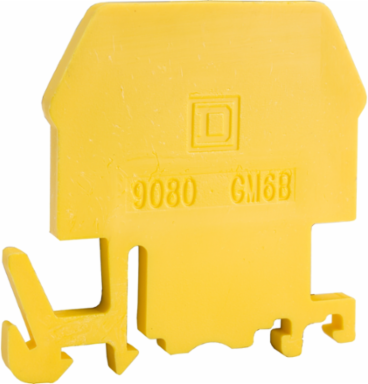

Square D 9080GMY6B Linergy End Barrier Terminal Block, Nylon, 1.68 Inch Width, Yellow
Square D 9080GMY6B Linergy End Barrier Terminal Block, Nylon, 1.68 Inch Width, Yellow
- MPN: 9080GMY6B
- UPC: 785901349150
- PPN: SCH-9080GMY6B
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1.45/ EA
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GM6 or 9080GR6 terminal block. An end barrier is required at the end of all assemblies of 9080GM6 or 9080GR6 block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in yellow.
Features
- Ideal for distributing power to multiple loads
- Their versatility and easy wiring makes them ideal terminal block
- Meets a wide variety of application requirements
- Offers labor savings with easy wiring requiring a standard screwdriver
- All blocks are UL component recognized and CSA approved
Specifications
Physical Attributes
- Color
- Yellow
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 35 mm DIN rail, 9080GH track
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- ROHS EUR Full Compliance Status
- Under investigation
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Package Weight Lbs
- 4.536 g
- Product Or Component Type
- End Barrier
- Range Of Product
- 9080G
- Sustainable Packaging
- No
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
ROHS EUR In ScopeYes
ROHS EUR Full Compliance Status IdUNDER_INVESTIGATION
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Materialnylon
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 10
ReturnabilityNo
Medium DescTerminal block, Linergy, end barrier, yellow color, for 9080GM6 or 9080GR6 terminal block
Product Kit IdentifierN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- EU ROHS Directive
- Under investigation
- Packaging Without Single Use Plastic
- Yes
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Recycled Metal Content At Cr Level0 %
Packaging Made With Recycled CardboardYes
General Attributes
- Product Or Component Type
- End Barrier
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.12 in
