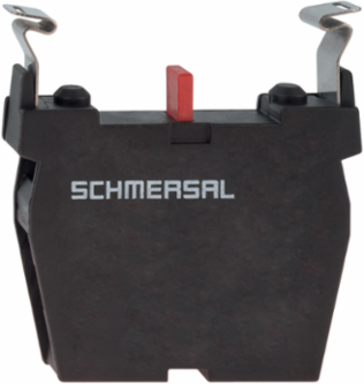

Schmersal 101023927 EF220.1 Contact and Terminal Blocks
- MPN: 101023927
- PPN: SCM-101023927
CAD
$33.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
EF220.1 Contact and Terminal Blocks
Documentation & Downloads
Specifications
Additional
| Rated Insulation Voltage | 400 V |
|---|---|
| Utilisation Category AC-15 | 230 VAC, 8 A |
| Suitable for Low Voltages | 5 V / 3.2 mA |
| Mechanical Lifetime Minimum | 10,000,000 operations |
| Length | 46 mm |
| Depth | 60 mm |
| Mounting Flange Position | 1 |
| Cable Section Maximum | 2.5 mm2 rigid, 1.5 mm2 flexible |
| Number of Normally Closed Contacts | 2 |
| Housing Material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Degree of Protection Terminals | IP20 |
| Shock Resistance | 110 g / 4 ms |
| Standards | EN IEC 60947-5-1, EN IEC 60947-1 |
| Thermal Test Current | 10 A |
|---|---|
| Utilisation Category DC-13 | 24 VDC, 5 A |
| Max Switching Frequency | 1,200 per hour |
| Bounce Duration Maximum | 5 ms |
| Width | 10 mm |
| Connection Type | Screw terminals |
| Cable Section Minimum | 0.5 mm2 rigid, 0.5 mm2 flexible |
| Contact Type | Slow action opener (NC) |
| Contact Material | Silver |
| Degree of Protection Switch Rooms | IP40 |
| Ambient Temperature Range | -25 to +80 b0C |
| Vibration Resistance | 20 g / 10-200 Hz |
| Certifications | cULus, CCC |
