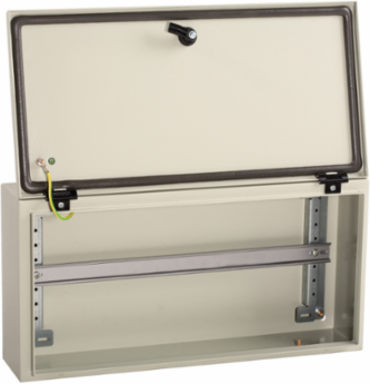

Compact Enclosure 600mm x 400mm x 150mm, IP66, IK10, Steel
Schneider Electric

Schneider Electric NSYS3DB6415 Compact Enclosure 600mm x 400mm x 150mm, IP66, IK10, Steel

  • MPN: NSYS3DB6415
  • PPN: SCH-NSYS3DB6415

CAD

$250.49

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Designed for durability and versatility, the PanelSeT S3DB enclosure by Schneider Electric is an ideal solution for terminal applications. With a robust construction from steel and an impressive IP66 rating, it ensures optimal protection against dust and water, making it suitable for a variety of environments. Measuring 600 mm in height, 400 mm in width, and 150 mm in depth, this compact enclosure features a solid door with a reversible opening and a secure three-point lock system for enhanced safety. Its sleek gray finish (RAL 7035) and IK10 impact protection rating further enhance its resilience, making it a reliable choice for any installation requiring dependable access and protection.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France

Physical Attributes

Color
Gray RAL 7035)
Enclosure Nominal Width
400 mm
Enclosure Nominal Height600 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 body, 1 door, 1 lock
Carbon Footprint Of The Distribution Phase [A4]
18.47938353907358, 18 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
1.833834653406662, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
kg CO2 eq., 0
Local Publishable Date
2026-04-14
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
3
Function Option
Standard
Device Application
terminal application
Door Type
Solid
Lock Type
3 points lock, 3 mm double-bar
Mounting Plate Description
without mounting plate
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Name
PanelSeT S3DB
Range
PanelSeT
Returnability
No
Surface Finish
epoxy-polyester powder
Total Lifecycle Carbon Footprint
88 kg CO2 eq.
Pep Code
ENVPEP1001004EN
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
9403200090
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyUL, BV, DNV, cUL, GL
Carbon Footprint Of The End-of-life Phase [C1 To C4]22 kg CO2 eq., 21.928290444604873
Carbon Footprint Of The Manufacturing Phase [A1 To A3]45 kg CO2 eq., 45.4472134186315
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Door Opening Sidereversible 180 °)
Energy Efficiency OptimizedFalse
Materialsteel
Number Of Doorsfront face 1
Product Destinationfor equipping with terminal
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Package Weight(Lbs)9.308 kg
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
87.68872205571661
Eu Rohs Directive
Compliant
Nema Degree Of Protection
NEMA 4X/13
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
compact enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
