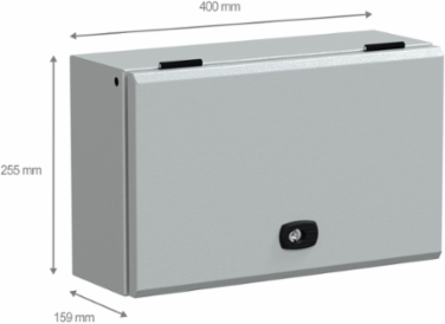

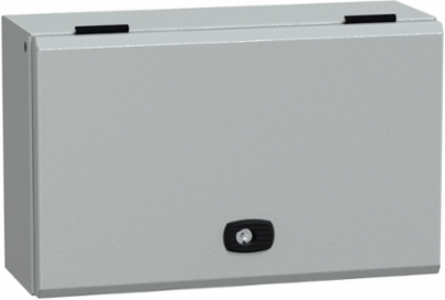

Schneider Electric NSYS3DB25415 Spacial S3DB Compact Enclosure 250x400x150 mm, IP66, IK10, Steel
- MPN: NSYS3DB25415
- PPN: SCH-NSYS3DB25415
CAD
$199.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Spacial S3DB compact enclosure. H is250xW is400xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- for equipping with terminal
- Installation Accessory Type
- horizontal or vertical position || wall-mounting
- Product Name
- Spacial S3DB
- Enclosure Nominal Height
- 250 mm
- Door Type
- plain
- Device Application
- terminal application
- Mounting Plate Description
- without mounting plate
Type Of Gland Platewithout gland plate
Product Or Component Typecompact enclosure
Device Composition1 body || 1 door || 1 lock
RangeSpacial
Enclosure Nominal Depth150 mm
Enclosure Nominal Width400 mm
Complementary
- Product Certifications
- cUL || LR || GL || UL || BV || DNV
- Removable Parts
- door by hinges
- Variant Particularity
- single piece body || gutter-shaped front rail double sheet thickness
- Net Weight
- 4.13 kg
- Number Of Doors
- front face 1
- Surface Finish
- epoxy-polyester powder
Accessibility For Operationfront
StandardsIEC 62208
Lock Type3 mm double-bar lock
Door Opening Sidereversible 180 °)
Materialsteel
Colourgrey RAL 7035)
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
Nema Degree Of ProtectionNEMA 4X/13
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
