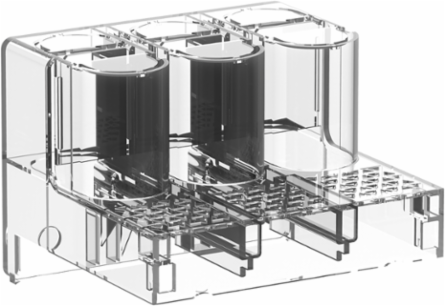

Schneider Electric LA9G3701 TeSys Giga 3 Pole Terminal Shroud, IP20 Protection, 0.1 kg
- MPN: LA9G3701
- PPN: SCH-LA9G3701
CAD
$79.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These accessories are terminal shrouds for TeSys Giga 115-225 contactor. It is used to 3 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom
Depth105.1 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- EN/IEC 60947-1, UL 60947-1, CSA C22.2 No 60947-1, GB/T 14048
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LA9G
- Poles Description
- 3P
- Product Or Component Type
- terminal shroud
- Range
- TeSys
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 98.5 mm
- Accessory / Separate Part Type
- installation accessories
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
Range Of ProductTeSys G
Sustainable PackagingYes
Pep CodeENVPEP2105013EN
Width Nominal80.5 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)174.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1G115...225, LC1G115...225
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2105013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2105013EN
Operating Altitude9842.52 ft (3000 m) without derating, 5000 m with derating factor
Take BackNo
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2105013
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal shroud
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
