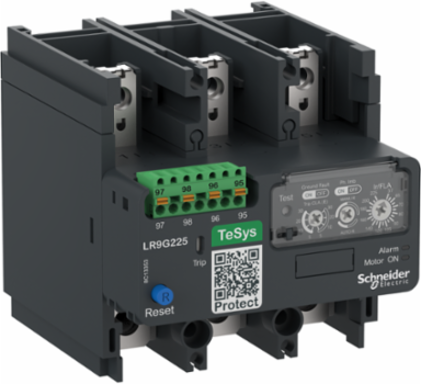

Schneider Electric LR9G225 TeSys Giga Electronic Thermal Overload Relay 57-225 A IP2X
- MPN: LR9G225
- PPN: SCH-LR9G225
CAD
$956.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LR9G 225A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth126 mm
Physical Attributes
- Color
- dark grey
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1emission tests criteria A conforming to IEC 60947-4-1, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3voltage dips and interruptions immunity test conforming to SEMI F47
- Mounting Support
- direct on contactor, plate
- Protection Type
- phase imbalance 0-5 s - alarm circuit UL 60947-4-1, ground fault protection 0-1 s - alarm circuit IEC 60947-4-1, ground fault protection 0-1 s - alarm circuit UL 60947-4-1, phase loss 0-4 s - alarm circuit, phase imbalance 0-5 s - alarm circuit IEC 60947-4-1
- Certificate Agency
- CB Scheme, CCC, cULus, UKCA, ATEX, EU-RO-MR by DNV-GL, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2420705189143047, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.050884093084178
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 206 kg CO2 eq., 205.7033000544477
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105014
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Mechanical Durability
- 7000 cycles
- Network Type
- AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- electronic thermal overload relay
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- No
- Thermal Protection Adjustment Range
- 57-225 A
- Total Lifecycle Carbon Footprint
- 223 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2105014EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential In %
- 42
- Width Nominal
- 105 mm
- [Uc] Control Circuit Voltage
- 24...500 V AC 50/60 Hz24...250 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local SignallingLED, trip indicator
Network Frequency30...60 Hz, 100 Hz
Resetautomatic reset, manual
Connections - Terminalspower circuit: bar - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: push-in 2 0.5-1.0 mm² with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.380924036454045, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 14.8607648604244
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLR9G
Mechanical Robustnessvibrations 5-300 Hz 6 gn contactor openshocks 15 gn 11 ms contactor closed
Overvoltage CategoryIII
Product NameTeSys LRG
Protective TreatmentTH
Relay Applicationmotor protection
Software Versionv6.1
Thermal Overload Classclass 5E...30E IEC 60947-4-1
Tightening Torque18 N.m
Tripping Threshold1.125 +/- 0.07 In IEC 60947-4-1
R Thermal Protection Adj Range57-225 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh235.644
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal107 mm
[Ith] Conventional Free Air Thermal Current5 A
[Ue] Rated Operational Voltage1000 V AC 50/60 Hz
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.425 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Ip Degree Of Protection
- IP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C-25-60 °C
- Environmental Disclosure
- ENVPEP2105014EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2105014EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Transport Temperature-25-60 °C, -25-60 °C
Permissible Ambient Air Temperature Around The Device-40-60 °C at Uc, -40-60 °C at Uc-40-60 °C at Uc, -40-60 °C at Uc
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint223.23794356332465
Circularity ProfileENVEOLI2105014
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- electronic thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Surge Protection And Filtering Attributes
- Surge Withstand
- 4 kV
