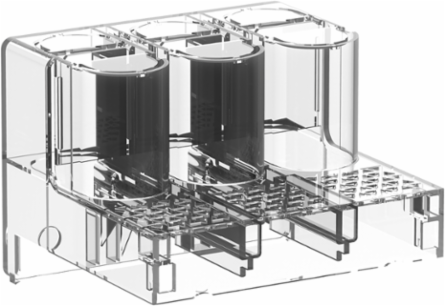

Schneider Electric LA9G3702 TeSys Giga Terminal Shroud, 3 Pole, IP20, 80.5 mm Width

MPN: LA9G3702
PPN: SCH-LA9G3702

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$112.80/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are terminal shrouds for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2105013

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Specifications

Poles Description: 3P

Product Or Component Type: terminal shroud

Quantity Per Setset of 1

Accessory / Separate Part Typeinstallation accessories

Complementary

Height: 98.5 mm

Depth: 140.7 mm

Net Weight: 0.21 kg

Width80.5 mm

Product CompatibilityLC1G265...500

Ip Degree Of ProtectionIP20 IEC 60529

Environment

Ambient Air Temperature For Operation: -60-80 °C

Ambient Air Temperature For Storage: -40-60 °C

Operating Altitude: 3000 m without derating || 5000 m with derating factor

Pollution Degree3 IEC 60947-1

StandardsEN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
