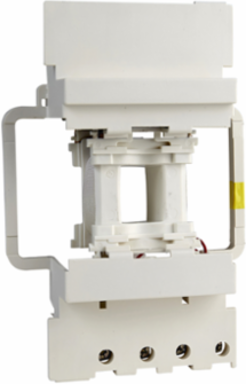

Schneider Electric LX1D8G7 TeSys Deca Contactor Coil 120V AC, Mercury Free, 2-18 VA

MPN: LX1D8G7
PPN: SCH-LX1D8G7

$236.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric TeSys Deca Contactor Coil is designed to efficiently manage and control electrical applications with a reliable 120V AC operation. Featuring a mercury-free construction, this coil exemplifies modern safety and environmental standards, making it a responsible choice for various automation and control tasks. With a power range of 2-18 VA, it provides robust performance while seamlessly integrating into a variety of starter and contactor solutions, ensuring dependable operation in industrial settings. This product is particularly suited for those seeking an effective and eco-friendly coil solution for their electrical systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United States

Complementary Attributes

Control Circuit Type	AC 50/60 Hz
Maximum Operating Rate	1200 cyc/h 60 °C

Control Circuit Voltage Limits	drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	280-350 VA 60 Hz cos phi 0.9 (at 20 °C), 280-350 VA 50 Hz cos phi 0.9 (at 20 °C)
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1924
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	4377 Ohm 20 °C
Device Short Name	LX1D8
Heat Dissipation	3-4.5 W 50/60 Hz
Mechanical Durability	8 Mcycles
Product Or Component Type	contactor coil
Range Of Product	TeSys Deca
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	120 V AC 50/60 Hz
Package Weight(Lbs)	294.000 g
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Hold-in Power Consumption In Va	2-18 VA 60 Hz cos phi 0.9 (at 20 °C), 2-18 VA 50 Hz cos phi 0.9 (at 20 °C)
Local Publishable Date	2026-06-27
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Energy Efficiency Optimized	False
Inductance Of Closed Circuit	109.69 H
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Pep Code	ENVPEP1102005EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504508000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility	LC1D150, LC1D115
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1102005EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1102005EN

Ambient Air Temperature For Operation	-5-60 °C, -5-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
