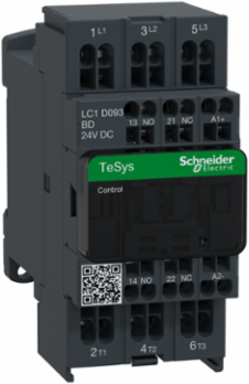

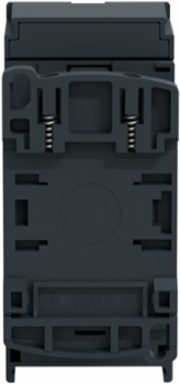

Schneider Electric LC1D093BD TeSys Deca Contactor 3P 9A 24V DC Coil IP20

MPN: LC1D093BD
PPN: SCH-LC1D093BD
UNSPSC: 39121529

$222.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 2HP at 200 to 208VAC, 2HP at 240VAC, 5HP at 480VAC and 7.5HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as stanard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Features

New modern look & feel of all machines
Designed to meet the requirements of industrial and HVAC applications
Easier to install and operate with multi-standard screws
With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	95 mm

Weight	525 g

Complementary Attributes

Irms Rated Making Capacity	250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1
Ie Rated Operational Current	9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Control Circuit Type	DC standard
Maximum Motor Phase Current	9 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	250 A at 440 V for power circuit conforming to IEC 60947
Uc Control Circuit Voltage	24 V24 V DC
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947

Maximum Horse Power Rating	2 hp at 230/240 V AC 50/60 Hz for 3 phase motors, 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors5 hp at 460/480 V AC 50/60 Hz for 3 phase motors7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
Ui Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Control Circuit Voltage Limits	0.1...0.25 Uc (-40-70 °C):drop-out DC0.7...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
Maximum Operating Rate	3600 cyc/h at 60 °C
Minimum Switching Voltage	17 V for signalling circuit
Icw Rated Short Time Withstand Current	105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
Ue Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contactor Application	resistive load, motor control
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	4 kW at 380...400 V AC 50/60 Hz (AC-3e), 4 kW at 415 V AC 50/60 Hz (AC-3e), 4 kW at 440 V AC 50/60 Hz (AC-3e), 5.5 kW at 500 V AC 50/60 Hz (AC-3e), 5.5 kW at 660...690 V AC 50/60 Hz (AC-3e), 2.2 kW at 220...230 V AC 50/60 Hz (AC-3)4 kW at 380...400 V AC 50/60 Hz (AC-3), 4 kW at 415 V AC 50/60 Hz (AC-3), 4 kW at 440 V AC 50/60 Hz (AC-3)5.5 kW at 500 V AC 50/60 Hz (AC-3), 5.5 kW at 660...690 V AC 50/60 Hz (AC-3), 2.2 kW at 220...230 V AC 50/60 Hz (AC-3e)2.2 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole	1.56 W AC-10.2 W AC-3, 0.2 W AC-3e
Connections Terminals	control circuit: 2 2.5-2.5 mm² - cable stiffness: flexible without cable endspring terminalspower circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end, power circuit: spring terminals 2 2.5-2.5 mm² - cable stiffness: flexible without cable end, control circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end, spring terminals
Certificate Agency	UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
Carbon Footprint Of The Distribution Phase A4	0.14699424706398806, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.04070520226073894
Carbon Footprint Of The Use Phase B2 B3 B4 B6	32 kg CO2 eq., 32.48400000000001
Local Publishable Date	2026-07-14
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	built-in bidirectional peak limiting diode suppressor
Contact Compatibility	M4
Fire Resistance	850 °C IEC 60695-2-1
Inrush Power In W	5.4-5.4 W 20 °C)
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	THIEC 60068-2-30
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	37 kg CO2 eq.
Inf Motor Phase Current	9 A
Data Source	extrapolated product
Width Nominal	45 mm
Customs Code	8536410045
Hold In Power Consumption In W	5.4-5.4 W 20 °C
Functional Unit Description	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
Functional Unit Unit	unit
Recyclability Potential In %	75

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Electrical Durability	0.6 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 9 A AC-3 <= 440 V, 2 Mcycles 9 A AC-3e <= 440 V
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms)
Mounting Support	plate, rail
Utilisation Category	AC-1, AC-4, AC-3, AC-3e
Control Circuit Voltage	24 V
Non Overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End Of Life Phase C1 To C4	1.2880458349287582, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	3 kg CO2 eq., 2.6596552952376262
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1102030EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	2.5 mOhm - Ith 16 A 50 Hz for power circuit
Compatibility Code	LC1D
Device Short Name	LC1D
Flame Retardance	V1 conforming to UL 94
Mechanical Durability	30 Mcycles
Operating Time	63 ±15 % ms closing20 ±20 % ms opening
Pole Contact Composition	3 NO
Product Or Component Type	contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v5.9.4
Time Constant	28 ms
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	99 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit16 A (at 60 °C) for power circuit
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI1102030EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29

Climatic Withstand	IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	36.61940057949112
Environmental Disclosure	ENVPEP110230EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Pep Code	ENVPEP110230EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
